TLT-STD-LR-2

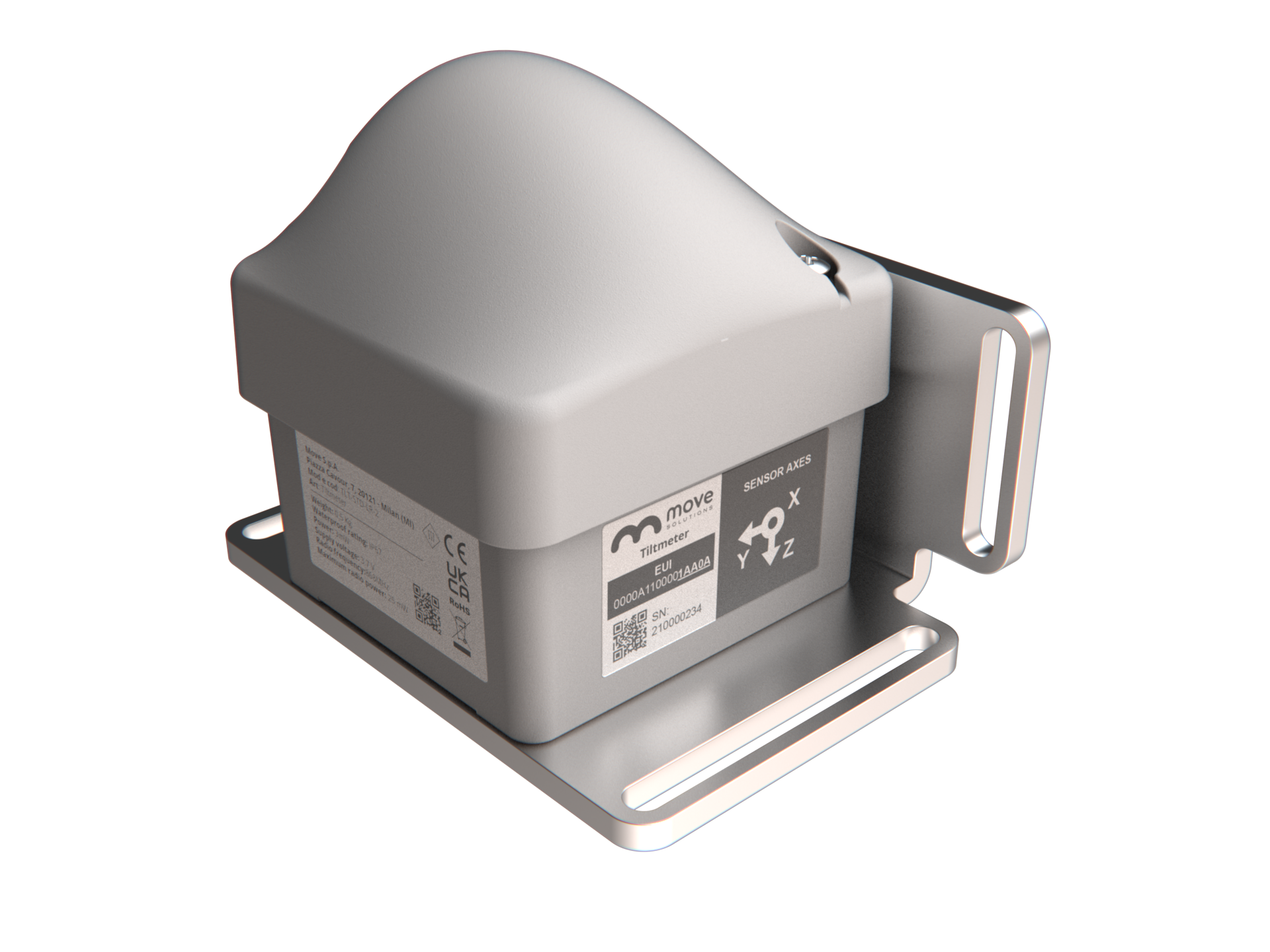

Tiltmeter

Advanced wireless sensor for static inclination monitoring The Tiltmeter is a wireless, battery-powered sensor designed to measure variations in the static tilt angle relative to the horizontal plane. Multiple devices can be synchronized across large assets to reconstruct deformation profiles and monitor structural movement via the MyMove IoT Platform.

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
move solutions sensors

Everything you need, built In

All Move Solutions sensors share the same foundation: precision, reliability, and seamless integration.

Wireless connectivity

Long-range, low-power data transmission ideal for remote and large-scale sites.

Long-term battery autonomy

Multi-year operation with adjustable sampling and transmission settings.

Full remote configuration

Configure settings, calibrate sensors, and manage alarm thresholds, all in one platform.

Durable hardware

IP66/IP67-rated for reliable use in harsh environments.

Main features

Precision tilt. Zero wires. Total structural awareness.

Tracks angular changes with sub-milliradian resolution, giving engineers full visibility into settlement, rotation, and early warning signs of instability.

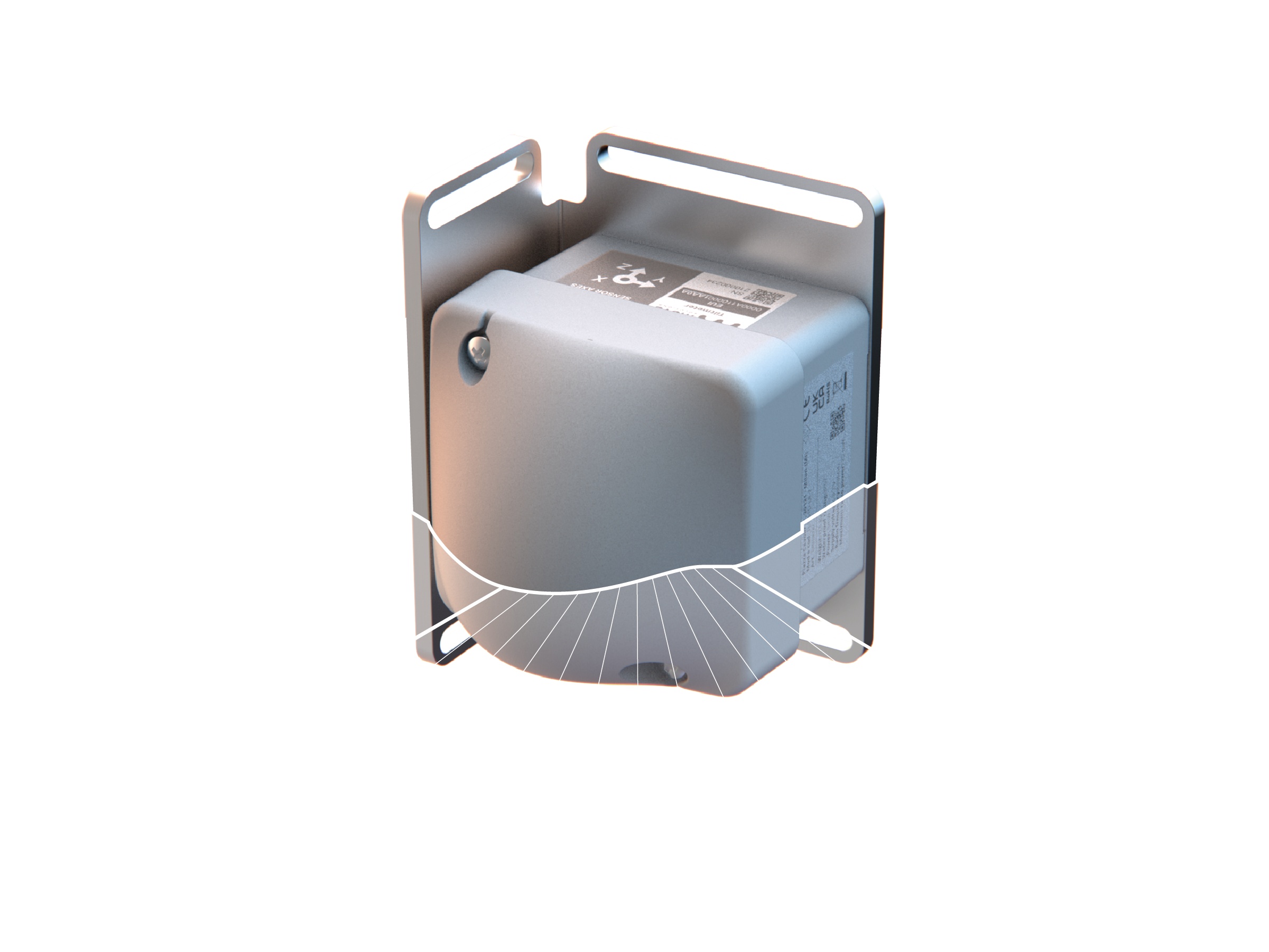

High-precision triaxial tilt measurement

Measures angular displacement around both longitudinal (φ) and transversal (θ) axes, with a resolution down to 0.0000001° and repeatability of ±0.0008°. Ideal for long-term monitoring of slow structural shifts.

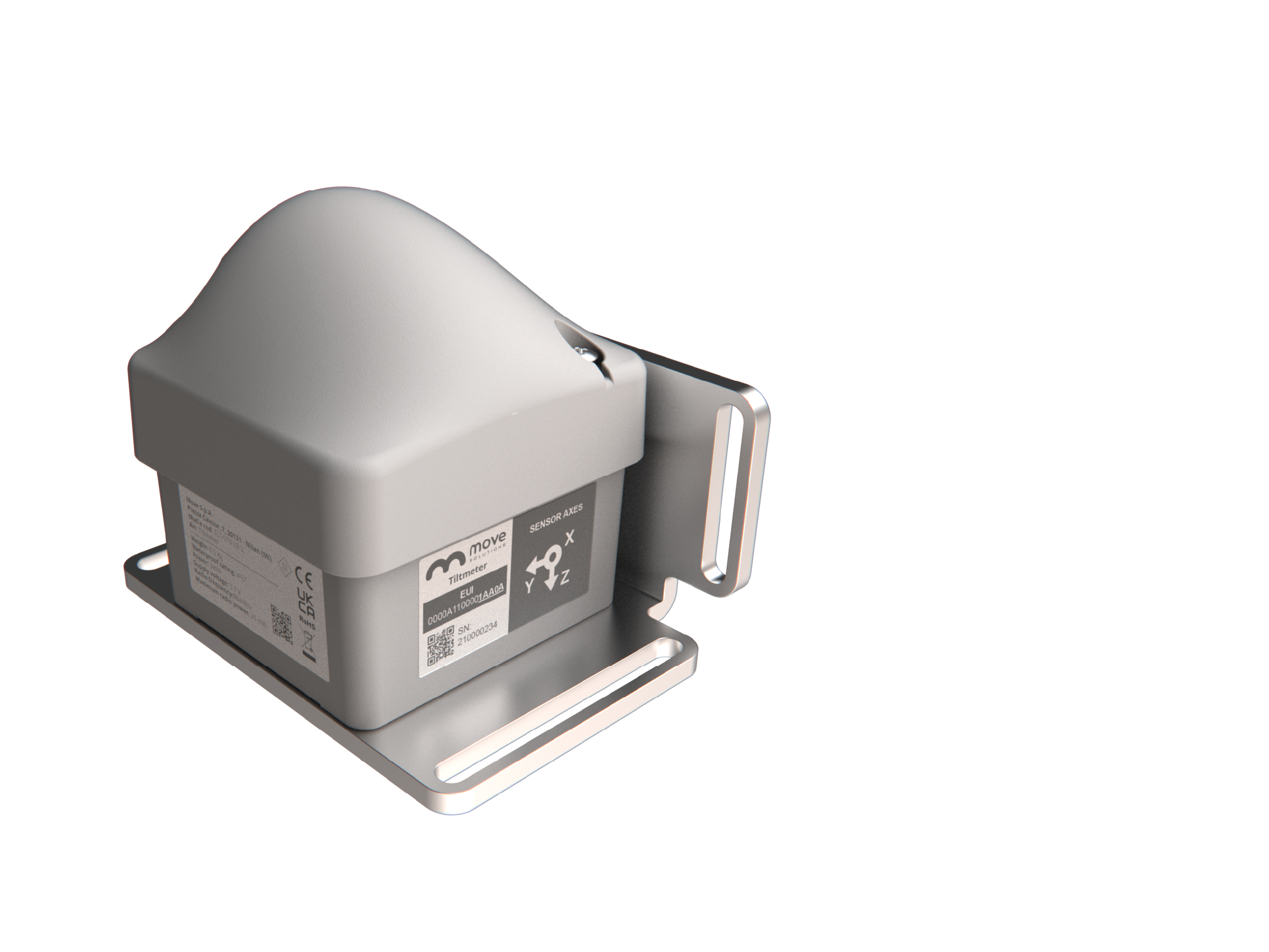

Multiple acquisition and trigger modes

Supports scheduled acquisition and event-based recording triggered by tilt, angular velocity, or acceleration thresholds. Data is only recorded when meaningful changes occur.

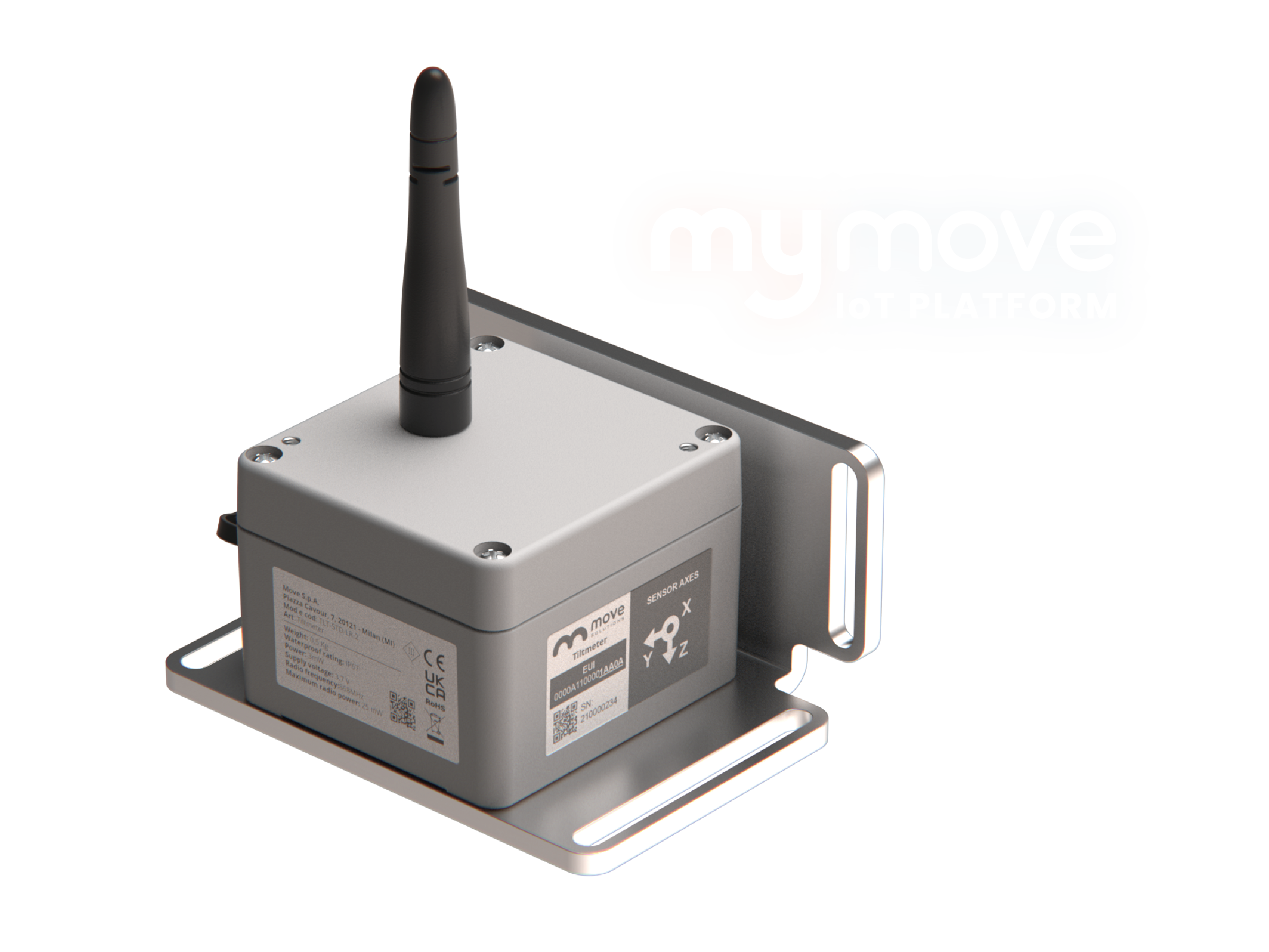

Integrated with MyMove advanced tools

Tiltmeters are fully compatible with advanced tools in the MyMove platform: • Tiltmeter Chains Tool: calculates absolute and differential displacement across chains of tiltmeters installed horizontally or vertically. • Rail Monitoring Tool: enables the computation of railway parameters such as CANT, TWIST, track vertical displacement, and rail elevation when tiltmeters are installed on sleepers or side beams.

Environmental and vibrational context

Each acquisition includes ambient temperature and RMS/peak vibration values, supporting multi-parameter correlation and advanced condition diagnostics.

What this sensor measures

Tilt angle φ (phi)

Rotation around the longitudinal axis of the structure, typically aligned with the main span direction.

Tilt angle θ (theta)

Rotation around the transversal axis of the structure, useful for twist or lateral deflection analysis.

Vibrational acceleration

RMS and peak values of 3D vibrational acceleration at the time of acquisition, bandwidth 0.1–31.25 Hz.

Temperature

Measured at each acquisition for correlation and thermal behavior analysis.

Available add-ons

No items found.
tlt-std-lr-2-4-0

Technical specifications

Angle accuracy

±0.002° (@ ±0.5°), ±0.01° (@ ±5°), ±0.25° (@ ±90°)

Sampling rate

125 Hz (4 kHz downsampled)

MEMS triaxial accelerometer

LoRaWAN 868/915 MHz

Internal memory

10,000 acquisitions

Power

1x 3.6V LiSOCl₂ 19Ah battery

IP67 aluminum case | Dimensions

97.5 × 80.5 × 66 mm | Weight: 0.5 kg

Operating temp

–40°C to +85°C

For detailed information about

Tiltmeter

capabilities, check the download datasheet section.

Downloads

Explore our datasheets and technical resources to access detailed product specifications, key features, and practical tools — everything you need to make informed decisions and get the most out of our technology.

Instruction manual

Download

Datasheet

Download

Read your data, your way.

Native platform

Use MyMove for real-time insights

Connect your sensors and devices to MyMove and access the full power of the platform:
real-time dashboards, alarms, automated PDF reporting, remote system control, and advanced tools for structural health monitoring.

Explore MyMove
sensors API

Integrate Move sensors via API

Use our API to access real-time and historical sensor data, configure devices remotely, and integrate everything into your SaaS, BIM model, or custom workflow.

Explore API integration
FAQ

Frequently asked questions

Find quick answers to common questions about our device and technology.
Didn’t find what you were looking for? Contact us—we’ll help you clarify any doubts.

What is the actual measurement accuracy and under which conditions is it maintained?
Can the Tiltmeter be used for dynamic events or only for static monitoring?
How is the acquisition schedule managed and what configuration options are available?
How does data transmission work and what infrastructure is required?
What are the environmental limitations and installation requirements?
