DECKAXE-SHM

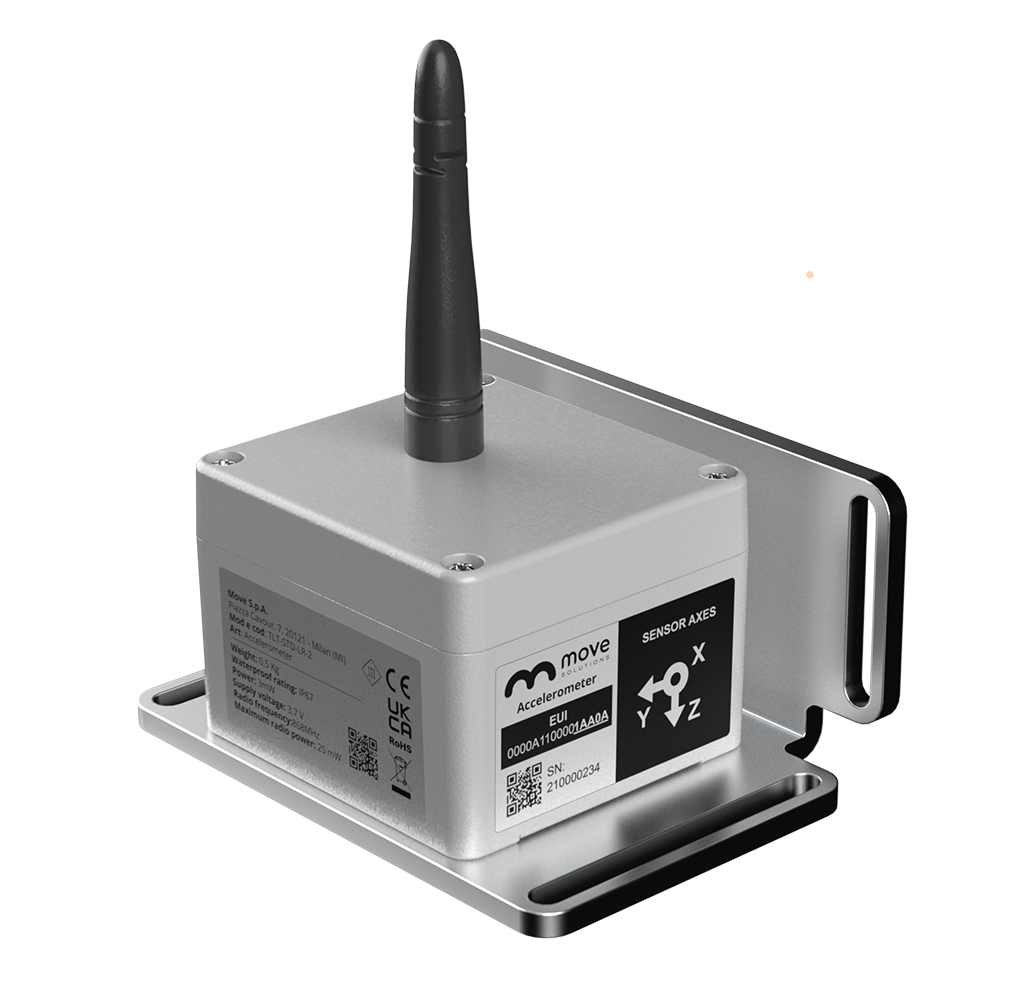

Accelerometer

Wireless triaxial sensor for acceleration monitoring The Accelerometer is a wireless, battery-powered sensor that measures structural vibrations on three axes with high resolution. Designed for dynamic monitoring and modal analysis, it records acceleration events with a programmable sampling rate from 40 to 640 Hz. It can acquire threshold-triggered events automatically when a threshold is exceeded, or can be set in programmed mode when high synchronization accuracy among different sensors is required. Ideal for many applications, it enables synchronized data acquisition with high time synchronization for advanced structural diagnostics and long-term monitoring strategies.

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
move solutions sensors

Everything you need, built In

All Move Solutions sensors share the same foundation: precision, reliability, and seamless integration.

Wireless connectivity

Long-range, low-power data transmission ideal for remote and large-scale sites.

Long-term battery autonomy

Multi-year operation with adjustable sampling and transmission settings.

Full remote configuration

Configure settings, calibrate sensors, and manage alarm thresholds, all in one platform.

Durable hardware

IP66/IP67-rated for reliable use in harsh environments.

Main features

High-speed data. Structural dynamics in motion.

Captures high-resolution triaxial acceleration for modal analysis and vibration studies, supporting synchronized campaigns across assets.

Triaxial vibration measurement

Captures structural acceleration on three axes with high resolution, enabling comprehensive detection of even minor vibrational modes.

Dual acquisition modes: programmed and threshold-triggered

Programmed (time-triggered) mode – synchronized (with high accuracy) acquisition at fixed intervals: 1, 2, 6, 12, 24 h Threshold-triggered mode – event-based acquisition when a predefined acceleration threshold is exceeded

Compatible with MyMove Modal Analysis Tool

Thanks to sub-millisecond synchronization (±500 μs), multiple accelerometers can be configured for modal analysis via MyMove's Modal Analysis Tool. This enables computation of: • Modal frequencies • Mode shapes • Damping ratios Perfect for dynamic characterization of bridges, towers, and large-scale structures, the tool provides time-aligned data visualization, automatic frequency identification, and cross-sensor correlation

Perfect for synchronized modal analysis

Multiple accelerometers can be precisely synchronized to analyze structural dynamics and perform frequency-domain assessments across complex structures.

What this sensor measures

Triaxial acceleration

Records X, Y, and Z axis acceleration during vibration events, measured in mg. Enables modal identification and peak detection.

Dominant frequency

Calculates the dominant frequency component of each vibration event within the selected bandwidth, useful for dynamic system characterization.

Temperature

Included in each event to correlate structural behavior with ambient conditions.

Available add-ons

No items found.
deckaxe-shm-3-0

Technical specifications

Sensor type

MEMS triaxial accelerometer

Resolution

15-bit (31.25 μg, 62.5 μg, 125 μg selectable)

Range

±0.512g, ±1.024g, ±2.048g

Noise density

22.5 μg/√Hz

Sampling rates

40 / 80 / 160 / 320 / 640 Hz

Threshold-triggered event acquisition duration

1.6 s to 25.6 s

Programmed event acquisition duration

12.8 s to 204.8 s

Time synchronization:

Absolute (for timestamps)

±1 s

Relative (between sensors)

±500 μs

Wireless

LoRaWAN 868/915 MHz

Battery

1x LiSOCl₂ 3.6V “D” cell, 19 Ah

Enclosure

IP67 aluminum (GD-AlSi12)

Operating temp

–40 °C to +85 °C

Weight

1.1 kg

For detailed information about

Accelerometer

capabilities, check the download datasheet section.

Downloads

Explore our datasheets and technical resources to access detailed product specifications, key features, and practical tools — everything you need to make informed decisions and get the most out of our technology.

Instruction manual

Download

Datasheet

Download

Read your data, your way.

Native platform

Use MyMove for real-time insights

Connect your sensors and devices to MyMove and access the full power of the platform:
real-time dashboards, alarms, automated PDF reporting, remote system control, and advanced tools for structural health monitoring.

Explore MyMove
sensors API

Integrate Move sensors via API

Use our API to access real-time and historical sensor data, configure devices remotely, and integrate everything into your SaaS, BIM model, or custom workflow.

Explore API integration
FAQ

Frequently asked questions

Find quick answers to common questions about our device and technology.
Didn’t find what you were looking for? Contact us—we’ll help you clarify any doubts.

What does the DECKAXE-SHM v3 measure, and how?
How does synchronized acquisition work for modal analysis?
What are the installation requirements for reliable data acquisition?
How is data transmitted and managed remotely?
What is the typical acquisition duration and resolution?
