DECKANA-STD

Communication Node

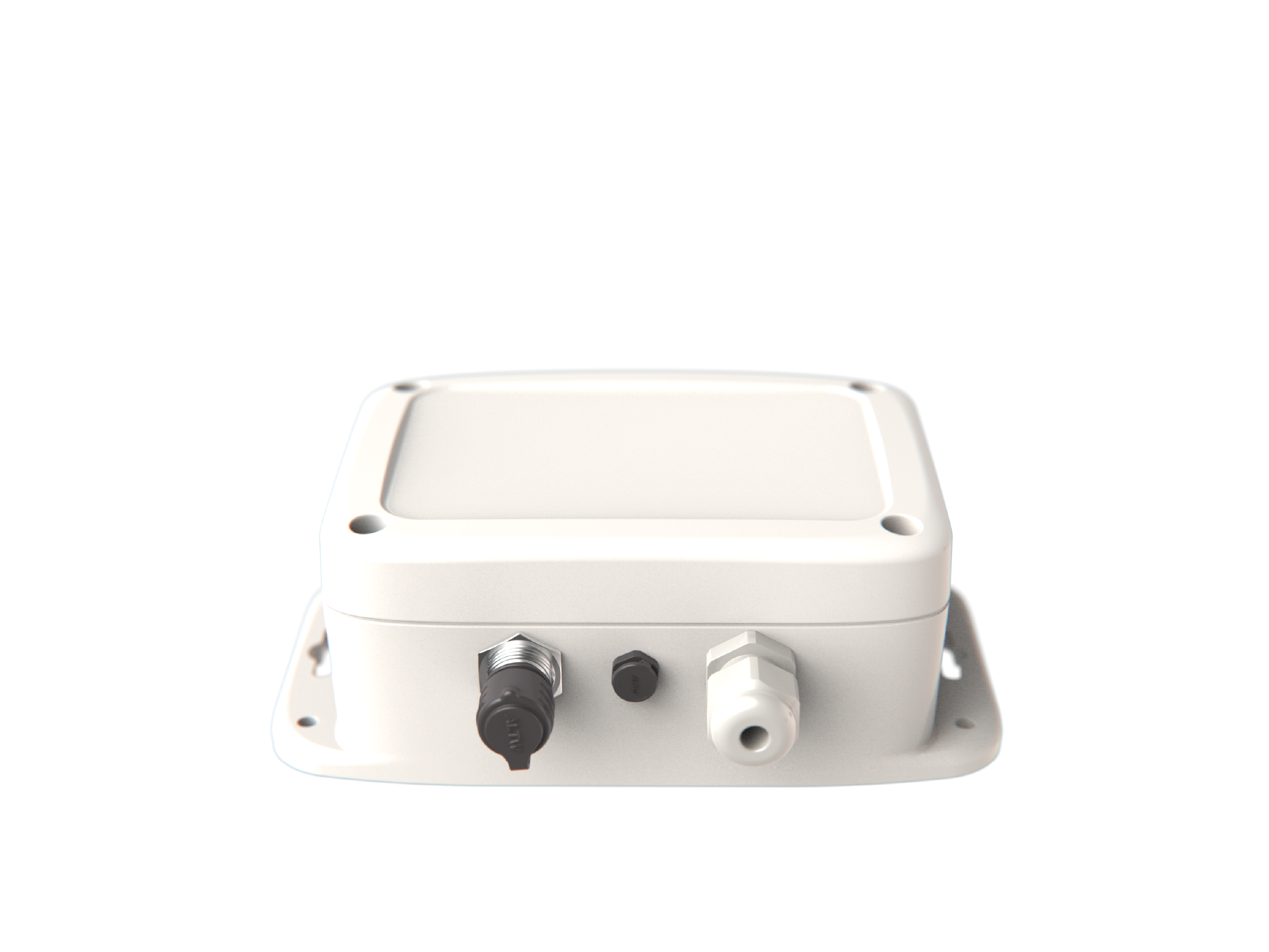

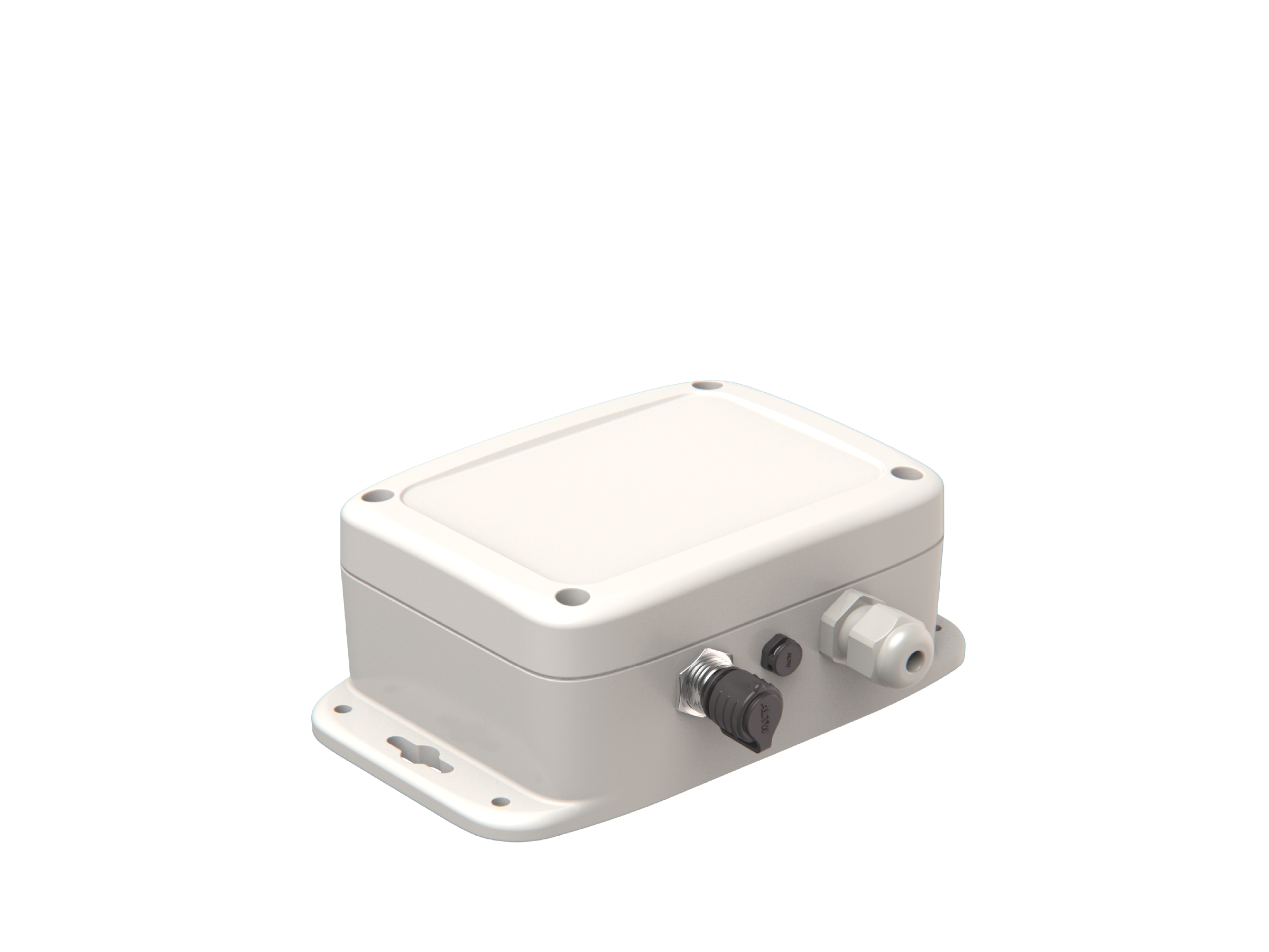

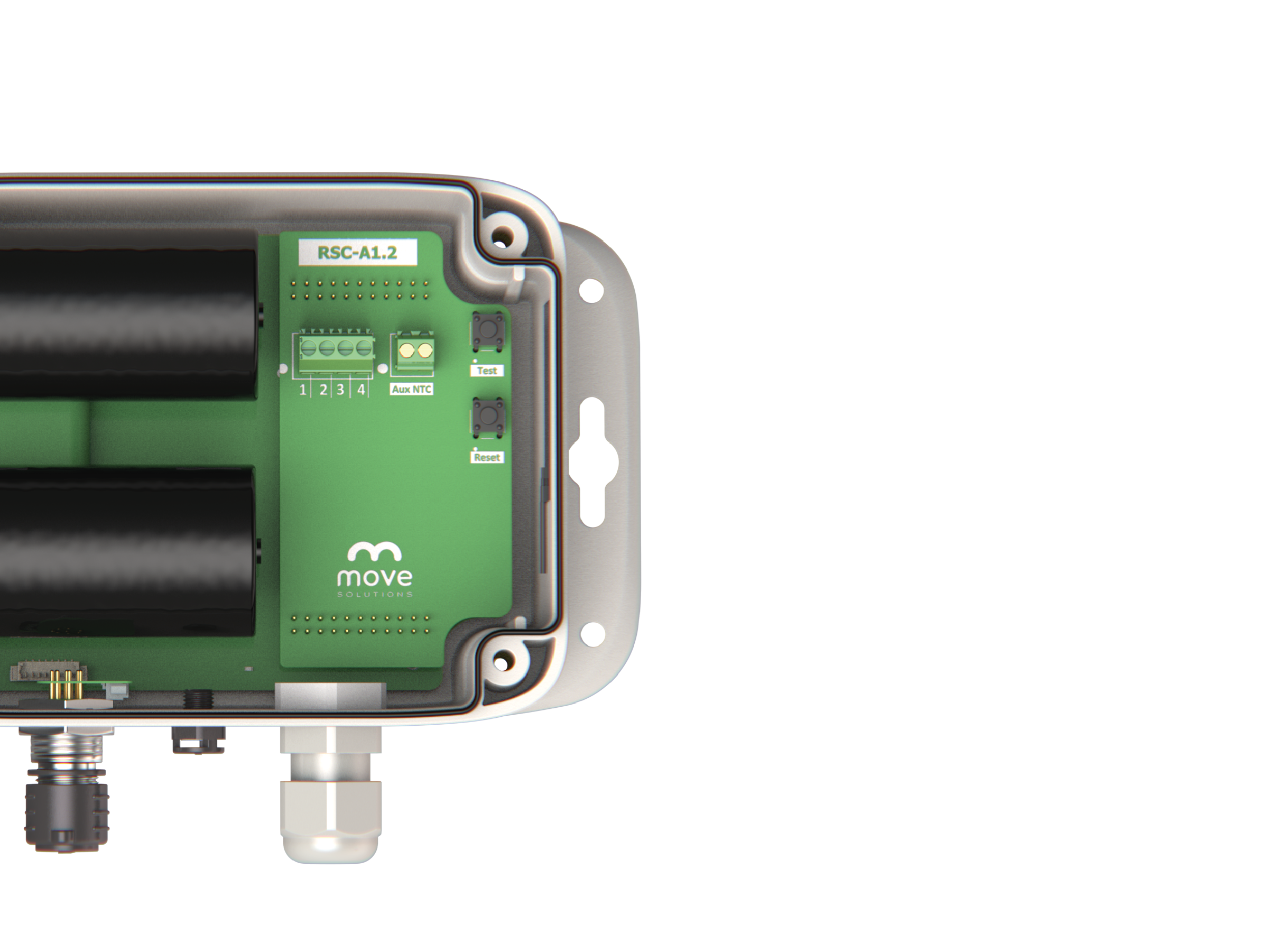

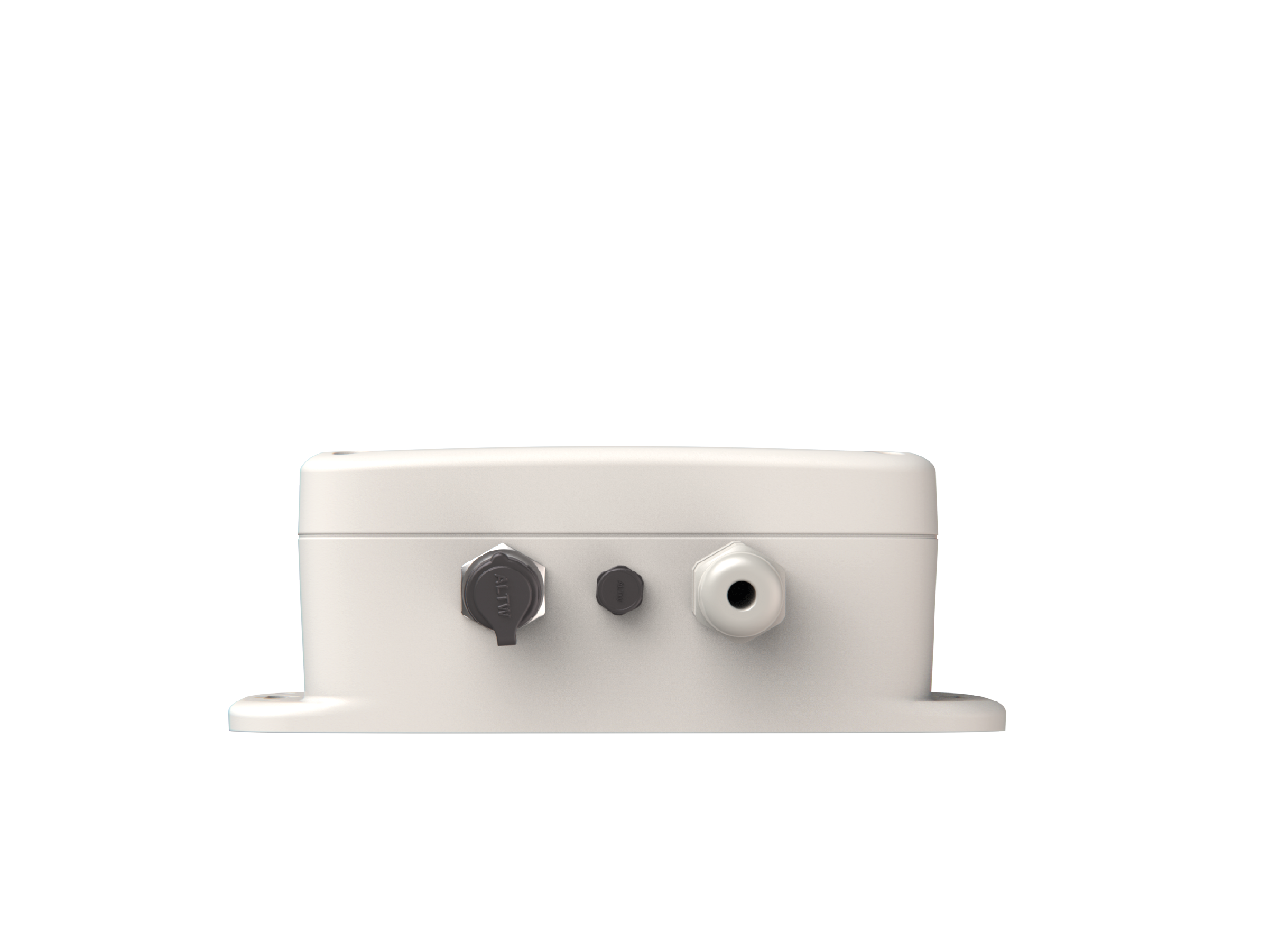

Wireless interface for analog and geotechnical sensor integration The Communication Node is a wireless, battery-powered device designed to digitize and transmit data from up to four analog probes. It supports a wide range of input types including current loop (4–20 mA), Wheatstone bridge (mV/V), and PT100 temperature probes. With wireless LoRaWAN connectivity, robust IP67 housing, and onboard processing, the Analog Node transforms traditional wired instrumentation into a modern, remote monitoring solution.

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
move solutions sensors

Everything you need, built In

All Move Solutions sensors share the same foundation: precision, reliability, and seamless integration.

Wireless connectivity

Long-range, low-power data transmission ideal for remote and large-scale sites.

Long-term battery autonomy

Multi-year operation with adjustable sampling and transmission settings.

Full remote configuration

Configure settings, calibrate sensors, and manage alarm thresholds, all in one platform.

Durable hardware

IP66/IP67-rated for reliable use in harsh environments.

Main features

Third-party sensors. One integrated system.

Digitizes and transmits analog inputs from external sensors via LoRaWAN, merging legacy instruments into the MyMove platform effortlessly.

Multi-input analog interface

Support 8 analog sensor interfaces:

  • 4–20 mA
  • mV/W
  • Voltage 5V
  • Voltage 12V
  • Potentiometer
  • NTC thermistor
  • PT100 - Pt1000
  • Vibrating wire

Configurable sampling and supply voltages

Acquisition cadence is remotely programmable (2, 10, 30, or 60 minutes). External instruments can be powered directly via onboard outputs (5V, 12V, or 24V DC upon request).

Compatible with MyMove platform tools

The Analog Node integrates into MyMove’s digital infrastructure, enabling data visualization, alerts, and multi-device management alongside native wireless sensors.

Autonomous wireless operation

Battery-powered and equipped with LoRaWAN, the node operates without cables or mains power. Perfect for remote, hard-to-access, or long-term deployments.

What this sensor measures

Analog voltage (mV/V)

For strain gauges, pressure cells, load cells

Current loop (4–20 mA)

For piezometers, inclinometers, displacement transducers

Temperature (PT100)

3- or 4-wire configuration, ±0.2 °C accuracy

Available add-ons

No items found.
deckana-std-1-0

Technical specifications

Channels

4

Supported inputs

4–20 mA, full-bridge (mV/V), PT100 (3/4 wires)

External power

5V / 12V / 24V DC (up to 250 mA, upon request)

Sampling interval

2 min, 10 min, 30 min, 1 h (remotely set)

Reading accuracy:

Voltage

±0.05% FS

Current loop

±0.05% FS

mV/V

±0.1% FS

PT100

±0.2 °C

ADC

24-bit Delta-Sigma

Time synchronization (for timestamps)

±1 s

Communication

LoRaWAN 868/915 MHz

Power

2x 3.6V Li-SOCl₂ batteries (19Ah)

Enclosure

IP67 polycarbonate

Size

180 × 119 × 61 mm

Weight

0.75 kg

Operating temp

–40 °C to +85 °C

For detailed information about

Communication Node

capabilities, check the download datasheet section.

Downloads

Explore our datasheets and technical resources to access detailed product specifications, key features, and practical tools — everything you need to make informed decisions and get the most out of our technology.

Instruction manual

Download

Datasheet

Download

Read your data, your way.

Native platform

Use MyMove for real-time insights

Connect your sensors and devices to MyMove and access the full power of the platform:
real-time dashboards, alarms, automated PDF reporting, remote system control, and advanced tools for structural health monitoring.

Explore MyMove
sensors API

Integrate Move sensors via API

Use our API to access real-time and historical sensor data, configure devices remotely, and integrate everything into your SaaS, BIM model, or custom workflow.

Explore API integration
