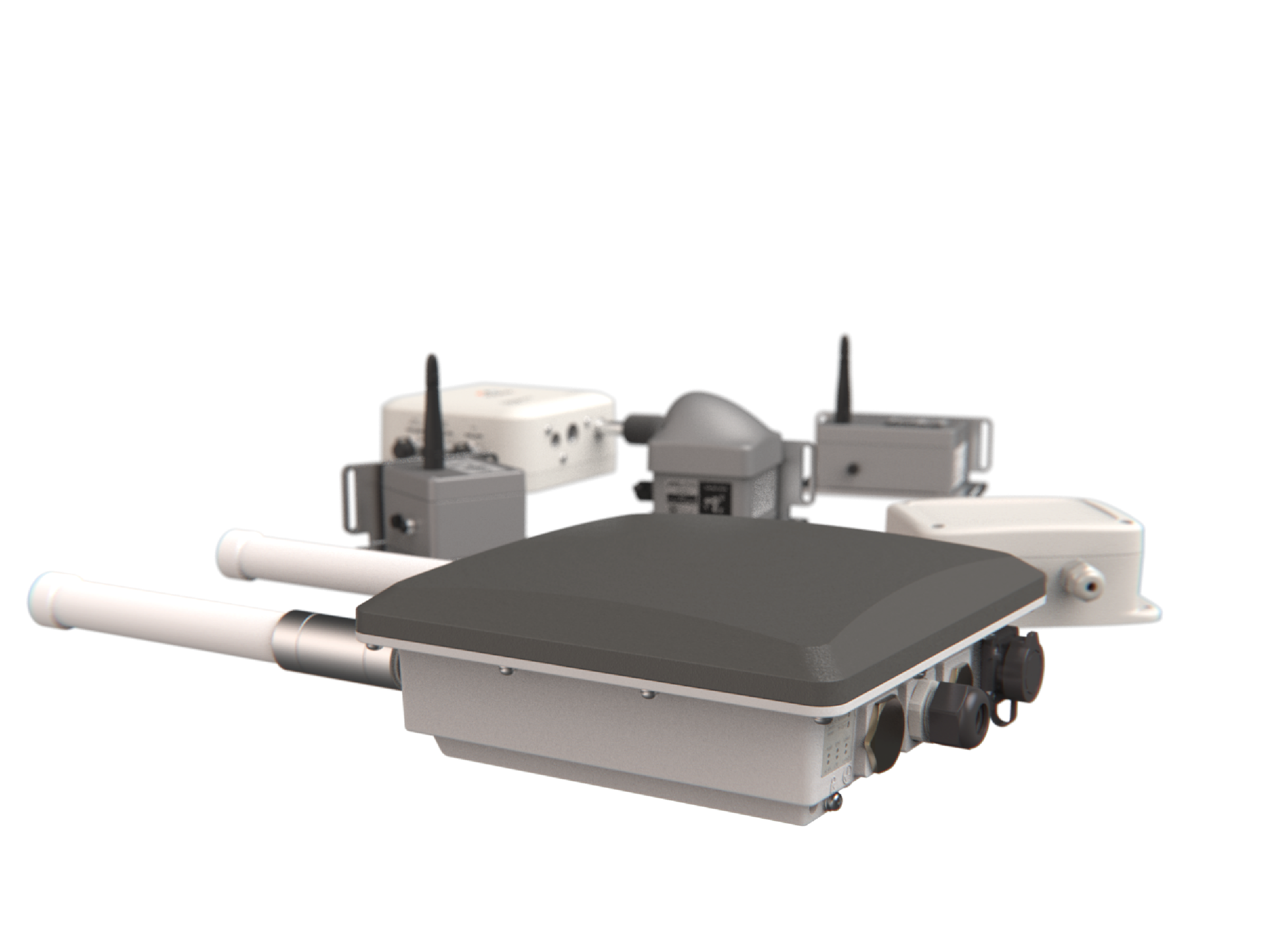

Move Solutions Gateway is a control unit that uses LoRaWAN communication to collect data measured by the sensors and transmits them to Move Solutions IoT Platform where the information can be processed and analysed.

LoRaWAN communication

Cellular 3G communication

Wi-Fi hotspot

Built-in GPS

Automatic APN detection

Powered by a battery or solar panel

IP67 waterproof rating

HOW IT WORKS

IoT network LPWAN

Move Solutions Gateway is a control unit for receiving and sending data with which, thanks to the LoRaWAN wide area communication protocol, it is possible to manage and communicate simultaneously with dozens of devices and sensors.This device, first of all, receives the information transmitted by the multiple sensors installed via LoRaWAN. Then, using cellular connectivity, it forwards this data to online servers. The device is Outdoor IP67 and is powered by PoE; optionally it can be powered by battery, with solar panel. The Gateway is equipped with LoRa, LTE, GPS and Wi-Fi antennas. Thanks to the dual LTE antennas, increased cellular coverage is possible. The device also implements a Wi-Fi hotspot and a builtin GPS for very precise synchronization and geolocation of the product. It is a very easy to set up thanks to the automatic APN and the included PoE adapter. The internal antennas make the setup process even simpler, and the external status LEDs allow the user to quickly check the functionality of the device.

Key Parameters:

  • Receiving and sending data via LoRaWAN
  • Cellular 3G communication
  • LoRa high gain antennas
  • LTE antennas
  • Built-in GPS
  • Wi-Fi hotspot
  • Automatic APN detection
  • Extremely simple installation with versatile mounting options
  • Powered by PoE; optionally it can be powered by a battery or solar panel
  • IP67 waterproof rating
LoRa
Operating Frequency:• EU433, CN470, EU868, US915
• AS923, AU915, KR920, IN865
Transmit Power:27dBm (Max)
Receiver Sensitivity:-139dBm (Min)
MAIN SPECIFICATIONS
Wi-Fi Feature:• Frequency: 2.400-2.4835GHz(802.11b/g/n)
• RX Sensitivity: -95dBm (Min)
• TX Power: 20dBm (Max)
• Operation Channels: 2.4GHz: 1-13
LoRa Feature:• Card: SX1303 Mini PCIe Card (connects maximum of two)
• Channels: 8 Channels (Optional: 16 channels)
• RX Sensitivity: -139dBm (Min)
• TX Power: 27dBm (Max)
• Frequency: EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865
Cellular Feature:• Supports Quectel EG95-E / EG95-NA(IoT/M2M-optimized LTE Cat 4 Module)
EG95 -E for EMEA Region:
• LTE FDD: B1/B3/B7/B8/B20/B28A
• WCDMA: B1/B8
• GSM/EDGE: B3/B8
EG95 -NA for North America Region
• LTE FDD: B2/B4/B5/B12/B13
• WCDMA: B2/B4/B5
Power Supply:PoE (IEEE 802.3 af), 37~57 VDC; 12V connector for external supply
Power Consumption:3W (Typical)
ETH:RJ45 (10/100Mbps)
Antenna:1 (2 for 16 ch. version) N-Type Connectors
Ingress Protection:IP67
Enclosure Material:Aluminum and plastic
Weight:3.15kg
Dimension:240 mm x 240 mm x 80 mm
Operating Temperature:-30˚C to +55 ˚C
Storage Temperature:-40˚C to +85 ˚C
Operating Humidity:0% to 95% (non-condensing)
Storage Humidity:0% to 95% (non-condensing)
Installation method:Pole or Wall mounting
OPERATION
Classic operation:Reception via LoRaWAN protocol
of data received and transmitted
by sensors; sending data to online
servers via a mobile cellular
connection.
Custom operation software:It is possible to request custom
communication features that the
customer deems necessary for
their business.

Easy installation of Move Solutions wireless monitoring system
The installation of an entire wireless sensor system on site is quick and easy: simply mount each device with at least two screws on the structure you want to monitor and power the LoRaWAN Gateway. You can configure the entire system remotely, before, during or after installation, using your laptop or tablet. After assembly and setup, the Move Solutions wireless monitoring system will start measuring and you can start monitoring remotely.

Operation of Move Solutions wireless monitoring system
The wireless sensor system automatically communicates the measurement data via LoRaWAN with the on-site Gateway which in turn sends the received data via 4G or LTE to the online servers. The Move Solutions IoT Platform is the cloud-based web tool that allows you to access, view and export your measurement data and configure the settings of the entire sensor system. You can access the Move Solutions IoT Platform 24/7 from any location or device around the world. One of the main advantages of the Move Solutions IoT Platform is that it offers remote access to measurement data and allows remote configuration of all installed sensors. This saves time and labor. In addition, you can analyze the measurement data using processing algorithms included in the service. Perform complex calculations, correlations and analyzes automatically and effortlessly. With the touch of a button, you can export measurement data in CSV format. You can also easily configure alerts to multiple recipients who will receive threshold cross notifications via email.

  • Easily install the entire system on the structure without the use of wiring.
  • Configure all wireless sensors quickly and remotely.
  • View real-time measurement data wherever you are, on any device, 24/7.
  • Process the data collected through the implemented algorithms.
  • Constantly monitors the operating status and signal quality of the system remotely.
  • Customize your alarm notifications and receive overrun notifications by email.
  • Optionally, you can integrate data on your platform using an MQTT bridge, FTP or through API calls.
