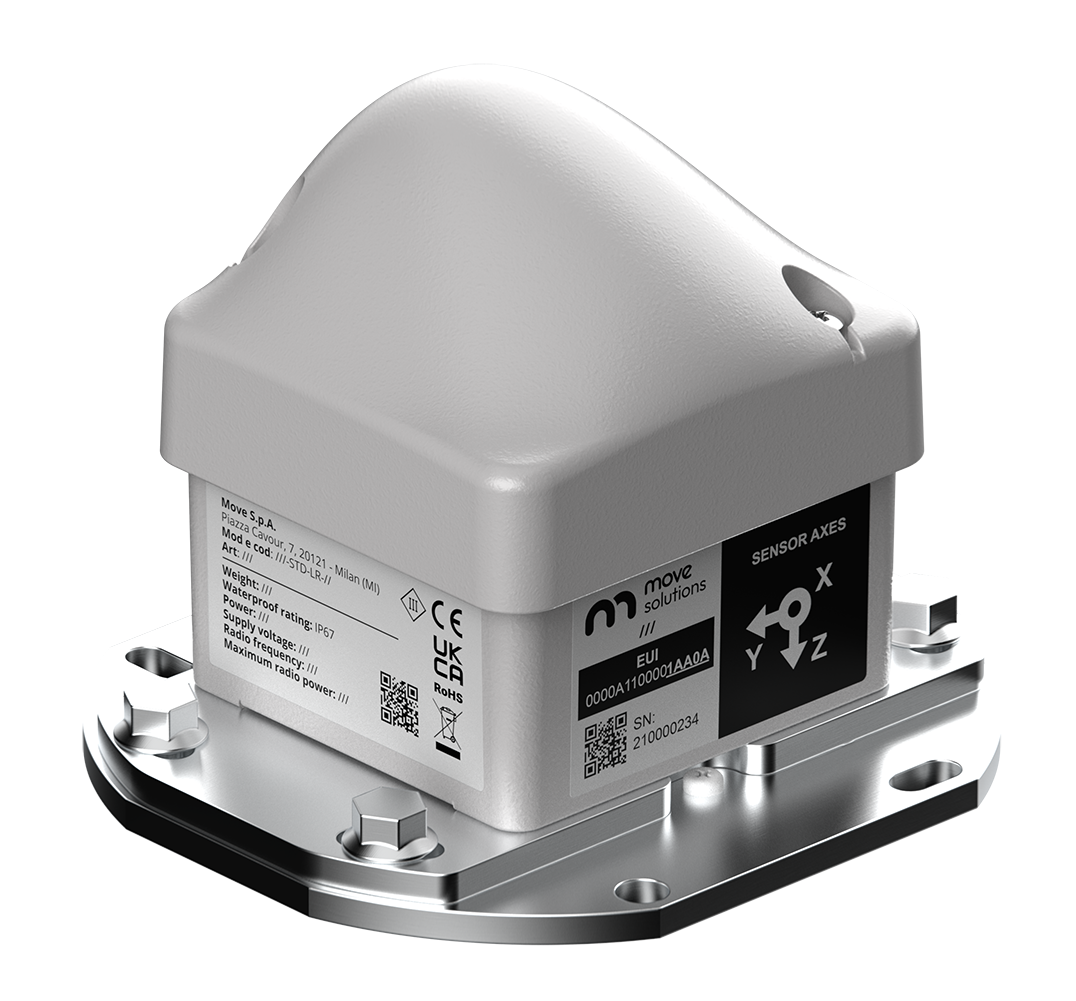

Vibrometer HS
The Vibrometer HS is a high-performance triaxial device designed to monitor structural vibrations through particle velocity, with optional waveform transmission for detailed event analysis. Fully wireless and LoRaWAN-enabled, it operates autonomously and streams time-synchronized data to the MyMove platform for visualization, alarms, and advanced processing. Built to support compliance-driven monitoring, it can be configured through international regulations and used with regulation-based alarm templates, from structural vibration assessment (for example ISEE, DIN 4150-3, BS 7385-2, Circulaire ’86, SN 640 312a, RI 8507, UNI 9916) to human exposure monitoring (for example DIN 4150-2 and BS 6472-1).
Everything you need, built In
All Move Solutions sensors share the same foundation: precision, reliability, and seamless integration.
Long-range, low-power data transmission ideal for remote and large-scale sites.
Multi-year operation with adjustable sampling and transmission settings.
Configure settings, calibrate sensors, and manage alarm thresholds, all in one platform.
Built for reliable use in harsh environments.
One device. Real-time control.
From regulation-ready setup to waveform-level insight, Vibrometer HS supports vibration compliance and event diagnostics without external post-processing workflows.
Available add-ons
Technical specifications
Measurement technology
MEMS triaxial accelerometer with on-board processing for vibration monitoring
Resolution
16 bits
Range
Configurable velocity fullscale up to 500 mm/s. Configurable acceleration fullscale up to 40.96 g
Sample rate
Configurable sampling rate up to 2000 Hz (regulation-dependent)
Acquisition modes
Trigger, Cadence (Programmed), or Combo
Time synchronization (for timestamps)
Time-synchronized timestamps in MyMove
Communication
LoRaWAN Sub-GHz
Local storage
Optional local data storage for offline recording (FIFO overwrite)
Power
External battery pack (required). Battery life depends on cadence and radio conditions
IP rating
IP67
Size
103x120x130 mm
Weight
TBD
Material
GD-AlSi12 aluminum alloy
Operating temperature range
from -40 °C to +85 °C
For detailed information about
Vibrometer
capabilities, check the download datasheet section.
