Performs acquisition on three orthogonal axes and provides key vibration metrics including PPV, PVS, RMS velocity, and peak acceleration. Wide configurable bandwidth and fullscale options let you match the measurement range required by your site and regulation.

Three operating modes are available: Trigger, Cadence (Programmed), and Combo. In Trigger acquisitions, you can enable waveform transmission on each axis and analyze events with cloud FFT and dominant frequency peak detection. Zero-crossing frequency is detected on board for both programmed and trigger acquisitions.

Select a regulation to automatically set bandwidth, fullscales, sampling rate, and processing mode. For alarms, you can use standard single-parameter thresholds or Frequency–Velocity curves, with predefined templates based on international standards. Custom configurations and custom alarm curves are also supported when you need site-specific limits.

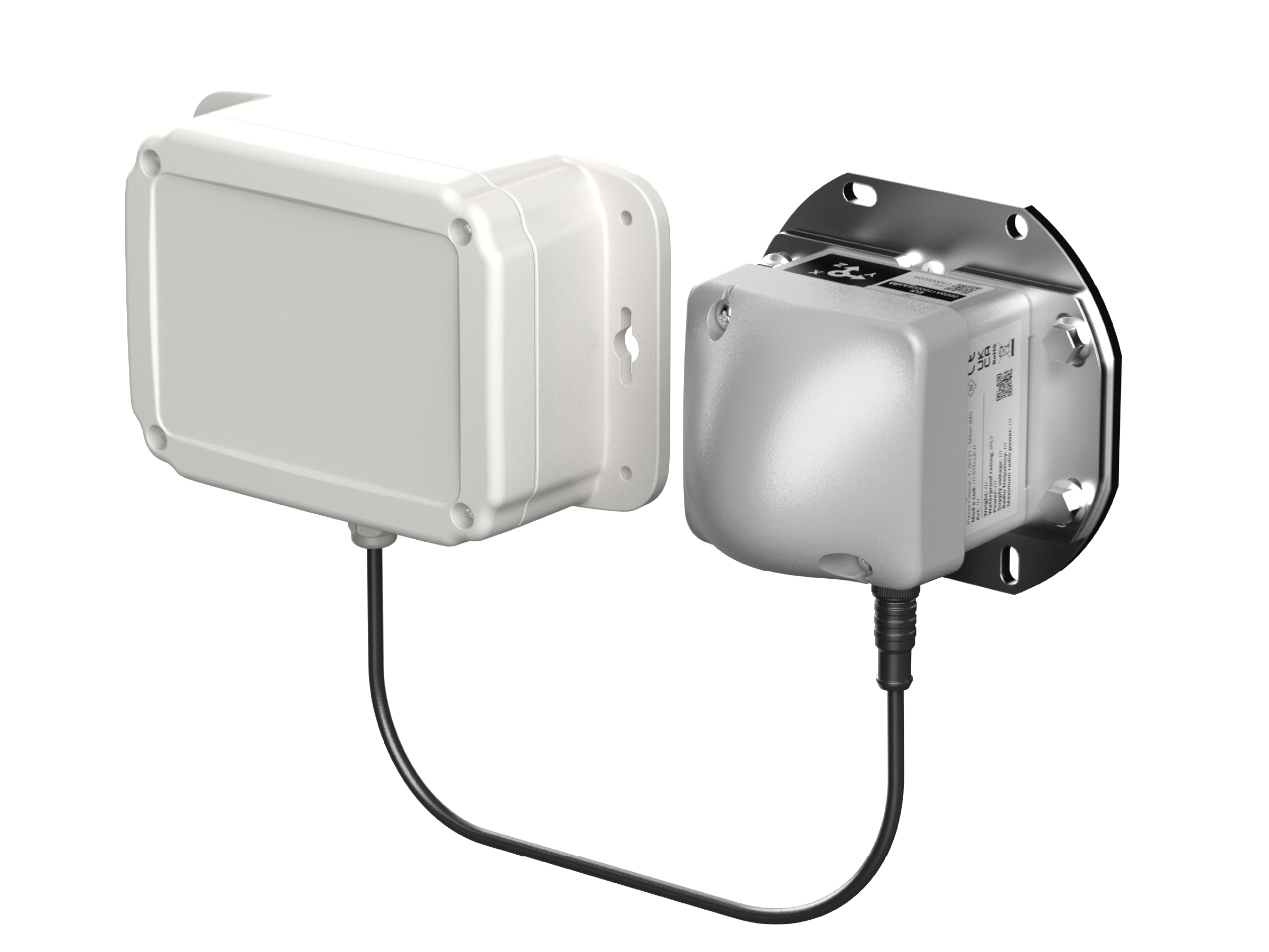

Vibrometer HS is powered through a dedicated external battery pack for extended deployments and easier maintenance. Diagnostics help monitor device integrity and operation. Calibration and re-calibration services are available when required by compliance workflows.
