Vibrometer
The Vibrometer is a triaxial, battery-powered device engineered to monitor structural vibrations through particle velocity measurements. Based on MEMS technology, it provides information about vibrational amplitude and dominant frequency across three axes. Fully wireless and LoRaWAN-enabled, it operates autonomously and transmits time-synchronized data to the MyMove platform for advanced analysis. Ideal for working with vibration monitoring standards such as DIN 4150 and UNI 9916, the sensor supports long-term deployments in infrastructure and construction environments where vibration must be assessed precisely.
Wireless connectivity
Long-range, low-power data transmission ideal for remote and large-scale sites.
Long-term battery autonomy
Multi-year operation with adjustable sampling and transmission settings.
Full remote configuration
Configure settings, calibrate sensors, and manage alarm thresholds, all in one platform.
Durable hardware
Built for reliable use in harsh environments.
One device. Real-time control.
Quantifies vibration velocity and dominant frequencies — no FFT post-processing required.

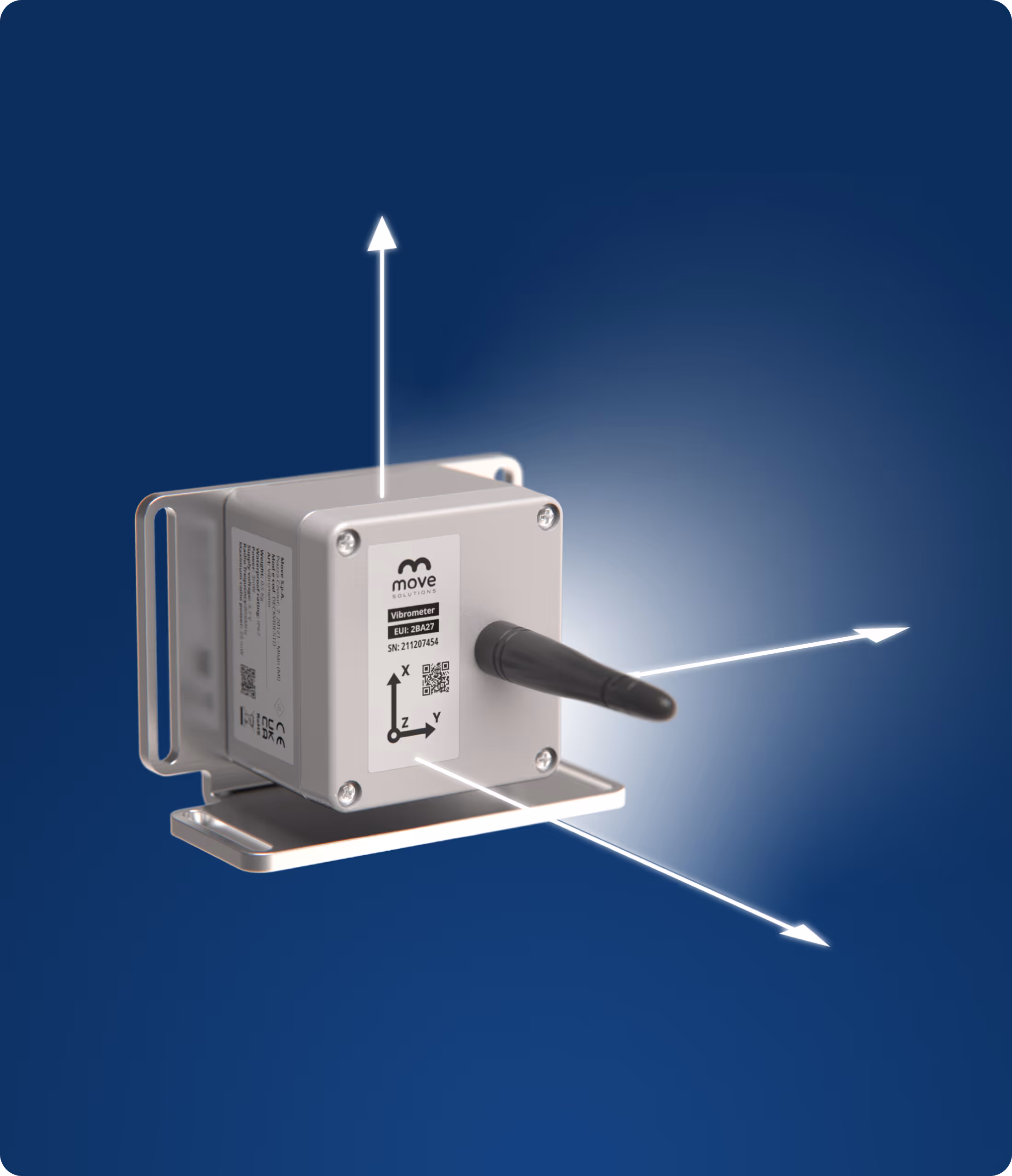

Triaxial velocity measurement
Performs real-time acquisition of velocity components along three orthogonal axes with high resolution and bandwidth of 1-100 Hz.

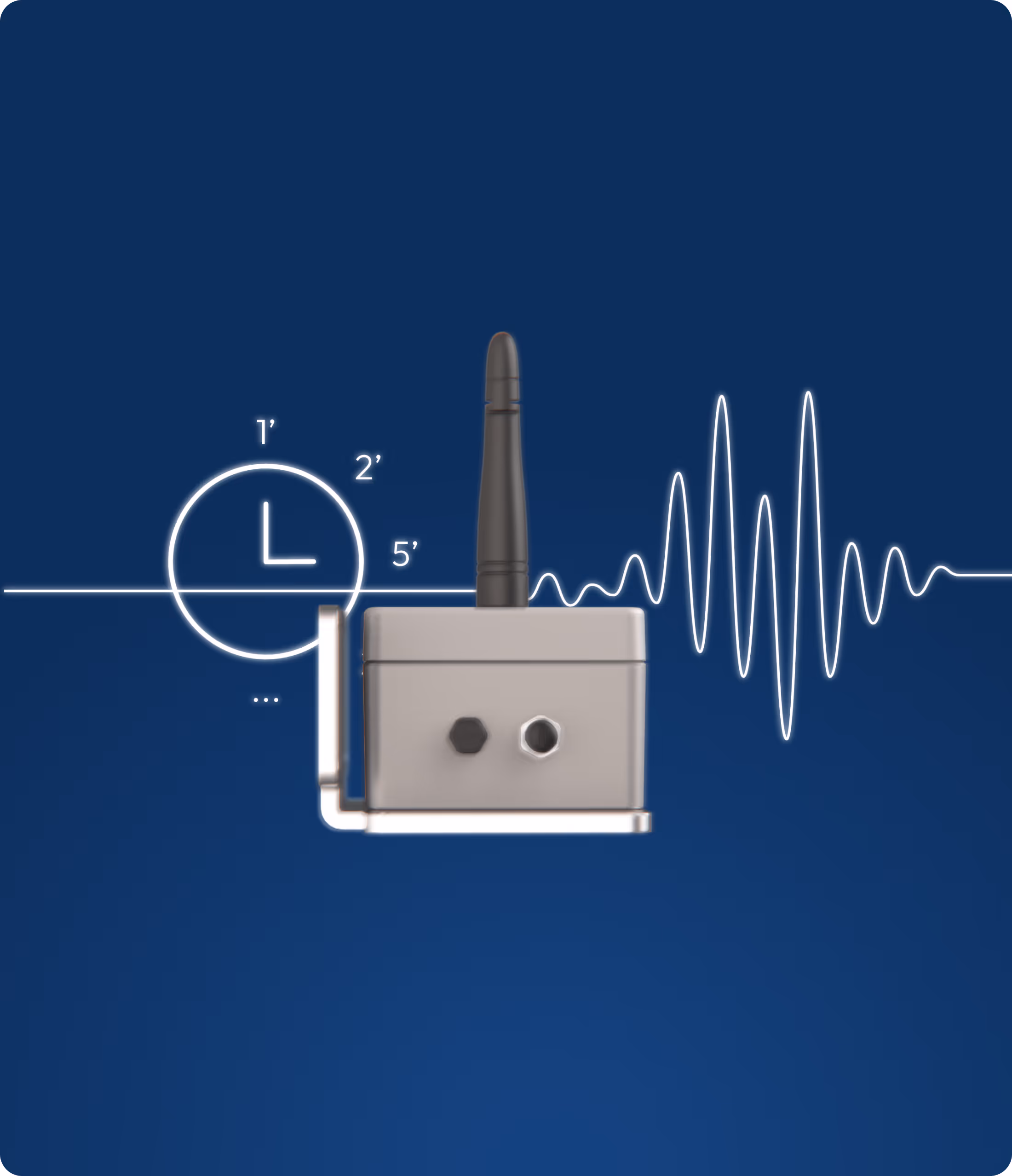

Programmed and event-triggered acquisition
Programmed mode: The sensor divides time into windows according to the selected cadence. Within each window, it
continuously monitors and tracks velocity, and once the window has elapsed, it transmits the data to the server.
Event-triggered mode: captures and stores vibration events exceeding configured threshold. Each acquired event includes, for each axis, the peak velocity value and the detected dominant frequency, as well as the temperature.

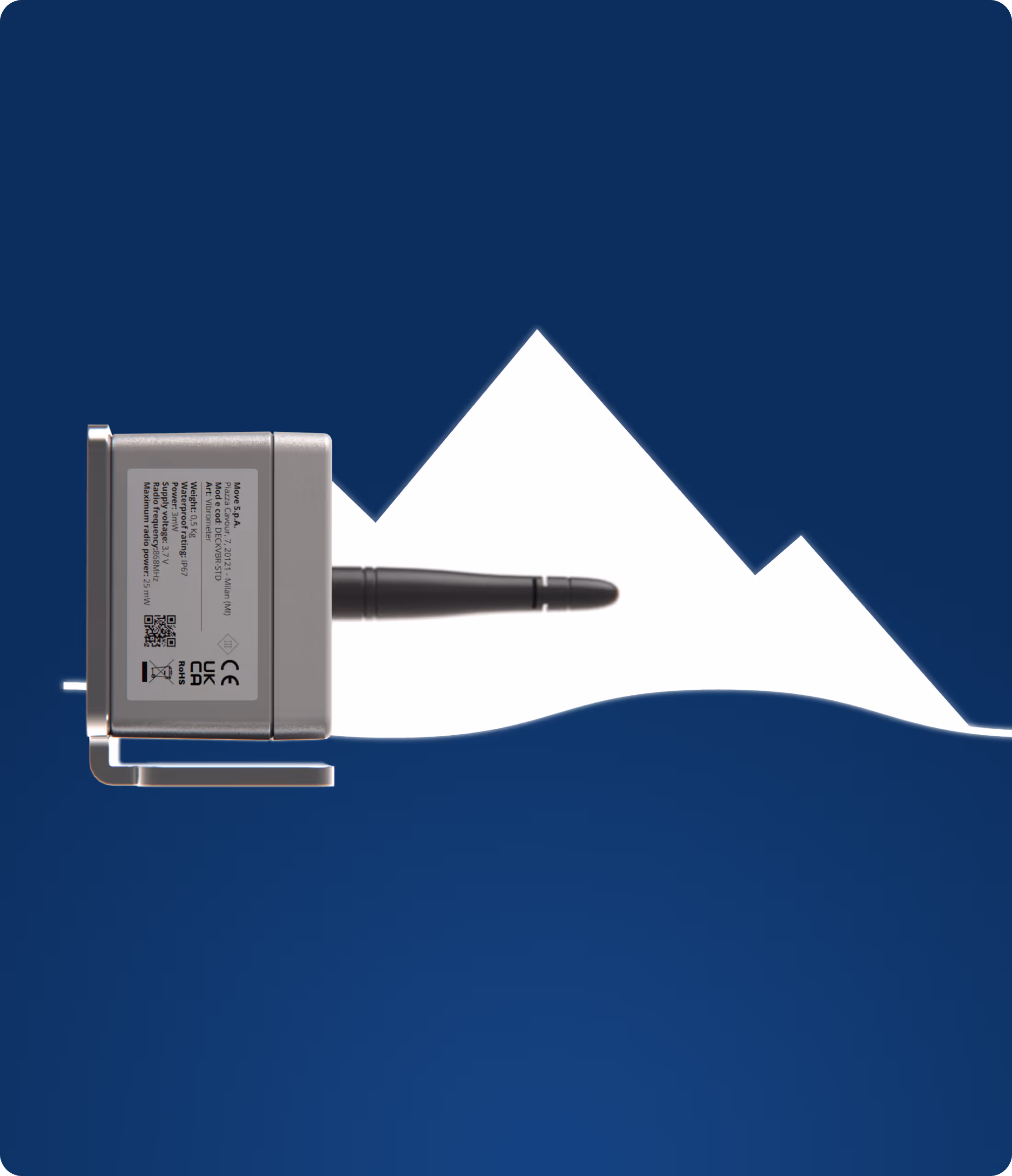

Fully autonomous operation
Battery-powered and wireless, the sensor is ideal for deployment in remote or difficult-to-access environments, minimizing installation effort.
Standards-aligned monitoring

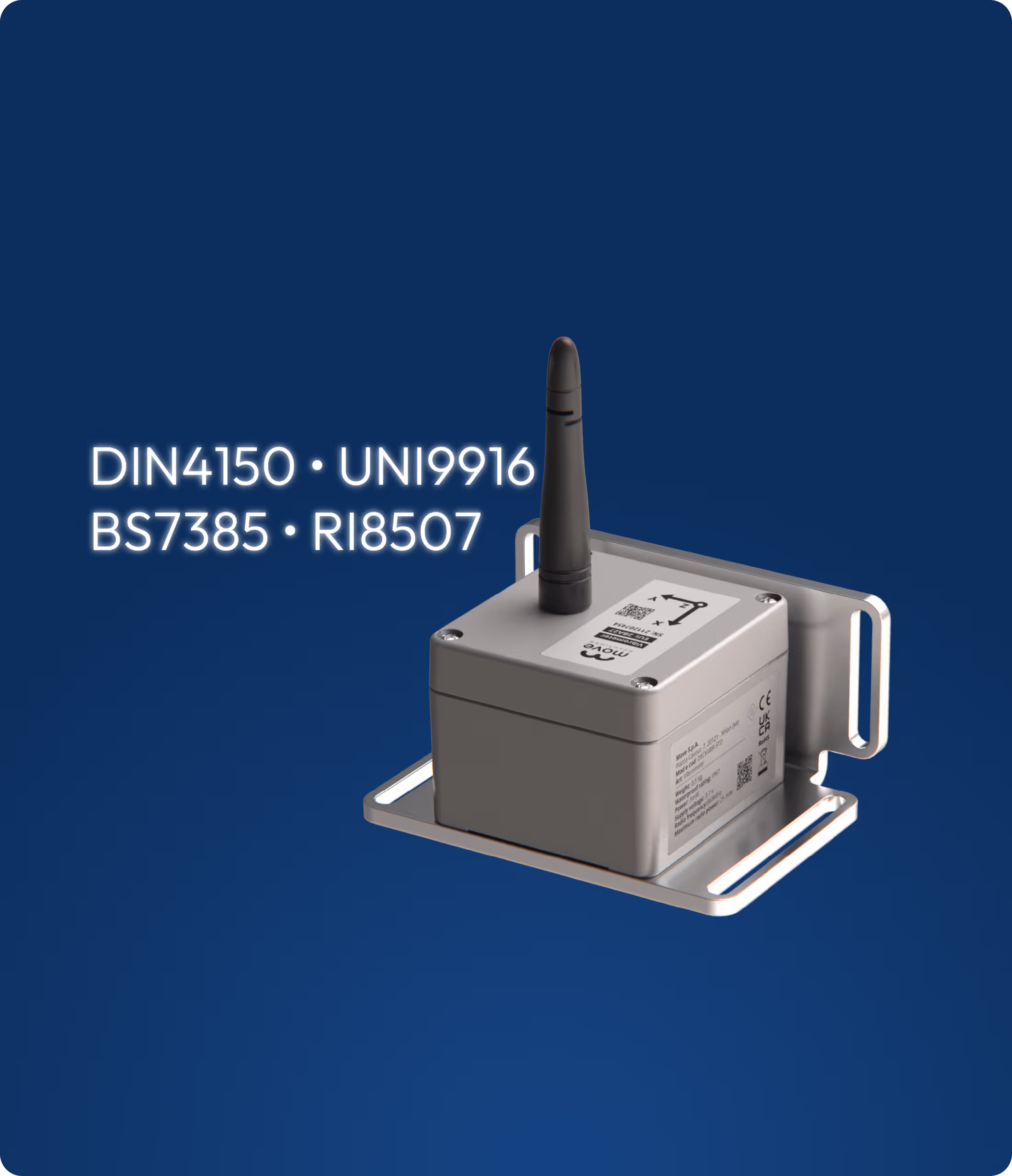

Supports vibration monitoring and provides the parameters used by standards such as DIN 4150, UNI 9916, BS 7385, and RI8507.
What this sensor measures
Triaxial velocity
Vibration velocity (mm/s or inch/s) along X, Y, Z axes.
Peak frequency
Maximum vibration frequency per axis per event.
Temperature
Logged with every acquisition for environmental correlation.
Technical specifications
For detailed information about Vibrometer capabilities, check the download datasheet section.
Downloads
Explore our datasheets and technical resources to access detailed product specifications, key features, and practical tools — everything you need to make informed decisions and get the most out of our technology.
Use MyMove for real-time insights
Connect your sensors and devices to MyMove and access the full power of the platform:real-time dashboards, alarms, automated PDF reporting, remote system control, and advanced tools for structural health monitoring.
Integrate Move sensors via API
Use our API to access real-time and historical sensor data, configure devices remotely, and integrate everything into your SaaS, BIM model, or custom workflow.
