Accelerometer

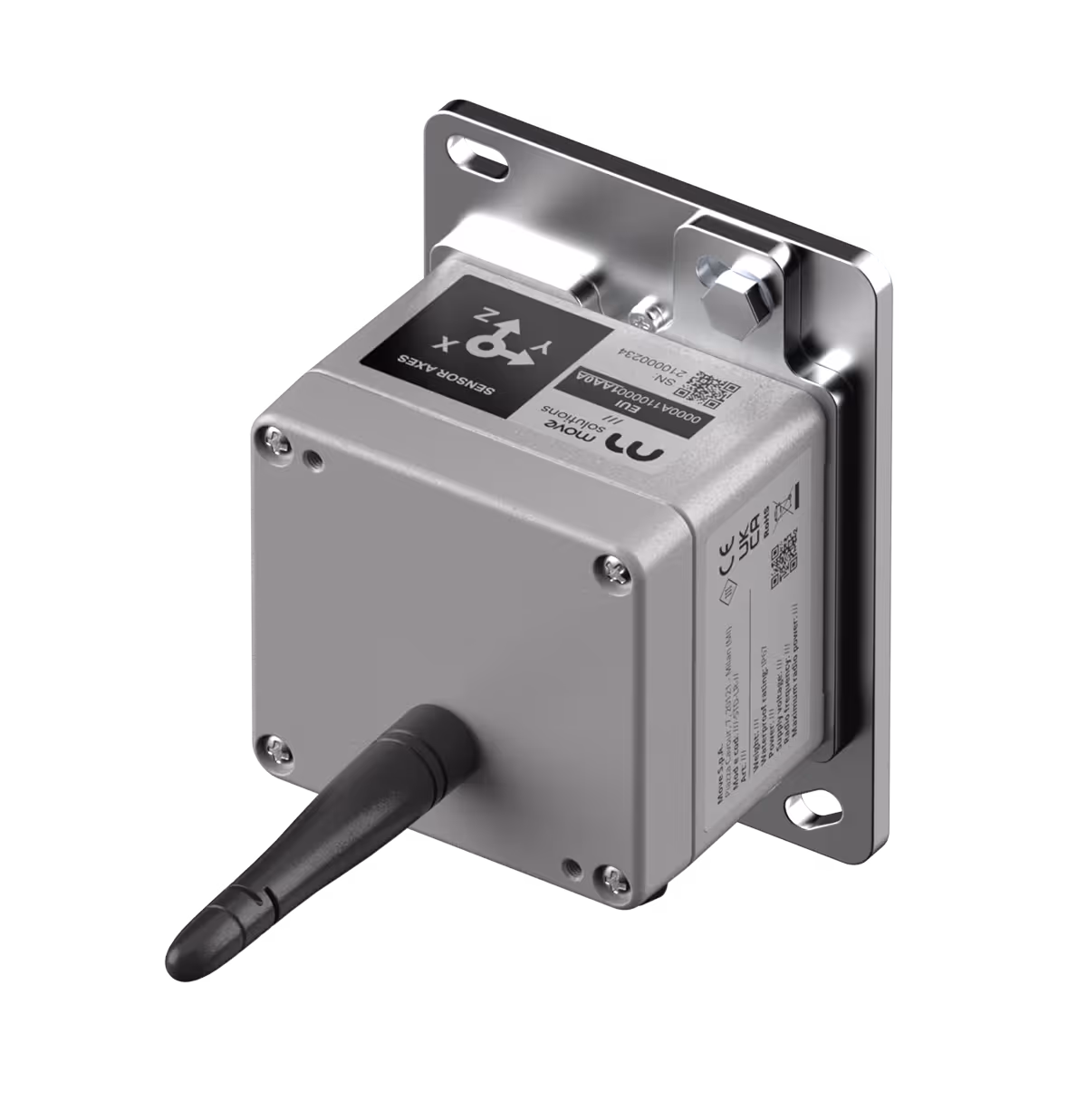

Accelerometer 5.0 is a wireless, battery-powered sensor designed to monitor structural vibrations on three axes with high resolution and flexible acquisition logic. It supports four operating modes, synchronized programmed campaigns for modal analysis, low-latency fast trigger events, and waveform-based acquisitions for deeper diagnostics. With selectable full scale up to ±8.192 g, internal data logging, offline recording, and seamless integration with MyMove, it is built for long-term dynamic monitoring in real site conditions. It also lets users align sensor axes with the structure’s longitudinal, transversal, and vertical directions, with automatic or manual vertical-axis definition.
Wireless connectivity
Long-range, low-power data transmission ideal for remote and large-scale sites.
Long-term battery autonomy
Multi-year operation with adjustable sampling and transmission settings.
Full remote configuration
Configure settings, calibrate sensors, and manage alarm thresholds, all in one platform.
Durable hardware
Built for reliable use in harsh environments.
Everything you need, built in
Accelerometer 5.0 expands what a wireless accelerometer can do in the field. It adapts to different acquisition strategies, different installation constraints, and different diagnostic needs without adding complexity to deployment.

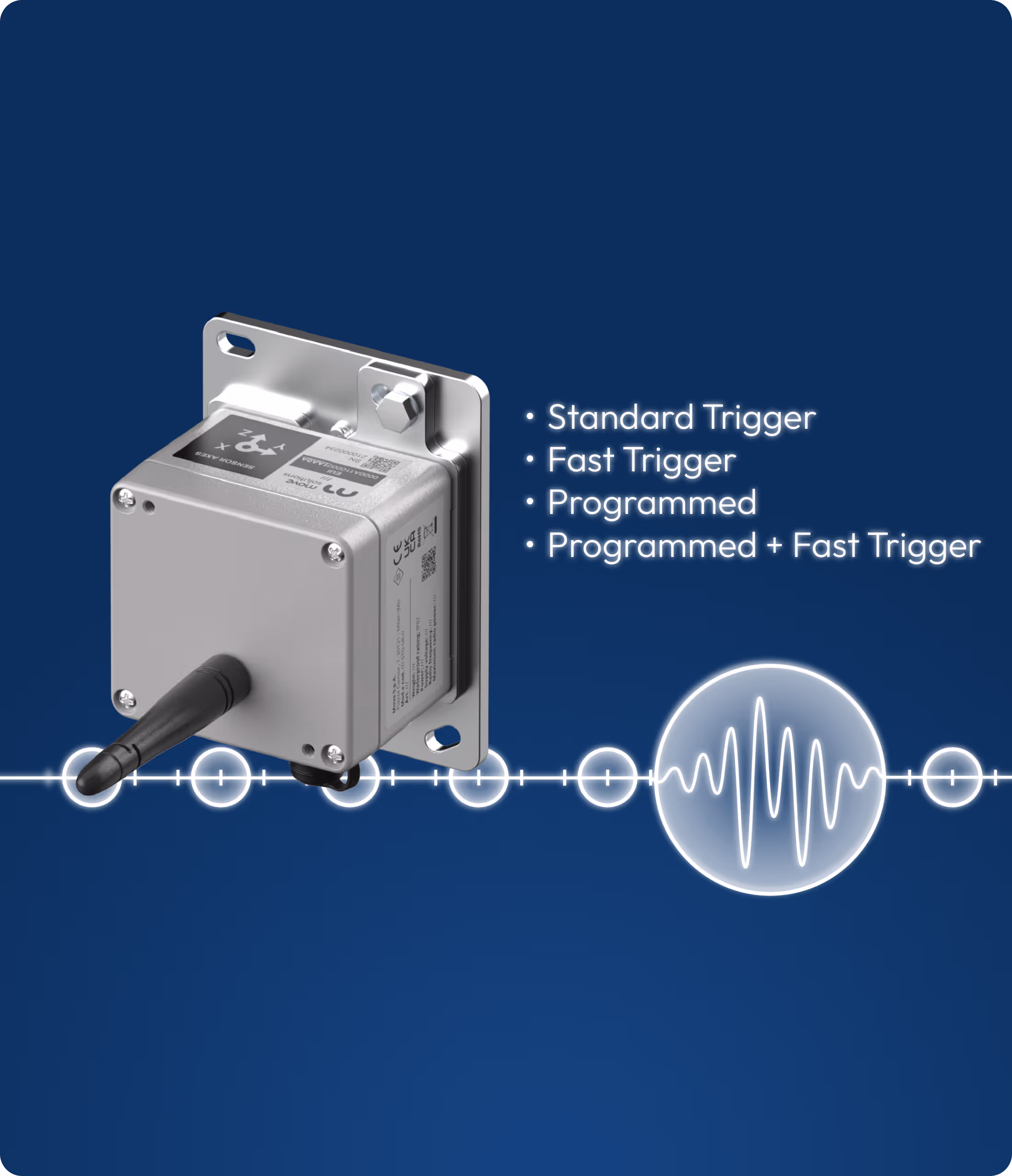

Four acquisition modes for different monitoring strategies
Choose between Standard Trigger with waveform, Fast Trigger for low-latency event detection, Programmed mode for synchronized campaigns, or Programmed + Fast Trigger when both scheduled monitoring and event tracking are needed on the same node

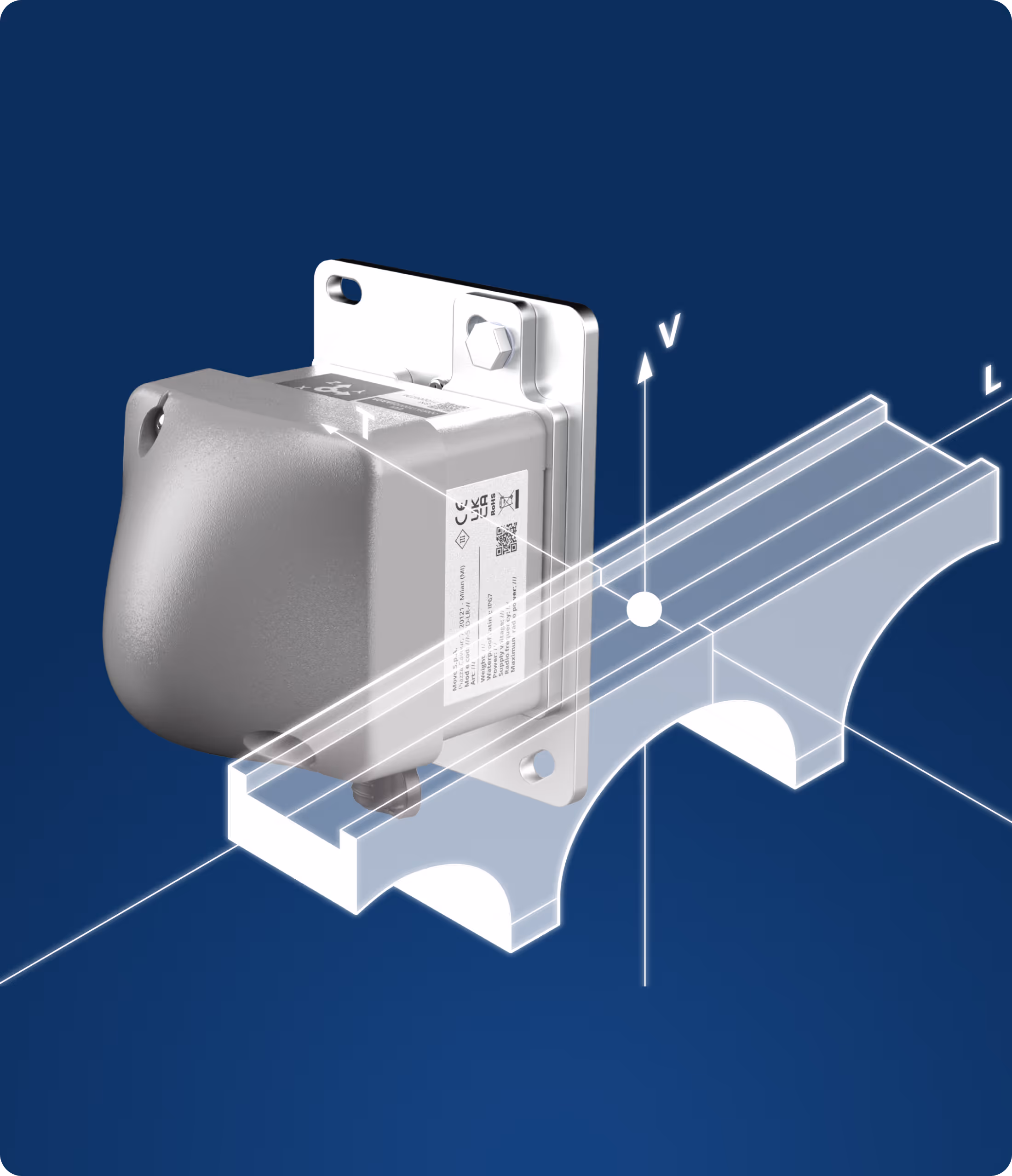

Structure-aware axis configuration
Map X, Y, and Z sensor axes to the structure’s longitudinal, transversal, and vertical directions. The vertical axis can be identified automatically from gravity or set manually from the platform, making data interpretation more consistent across installations with different orientations.

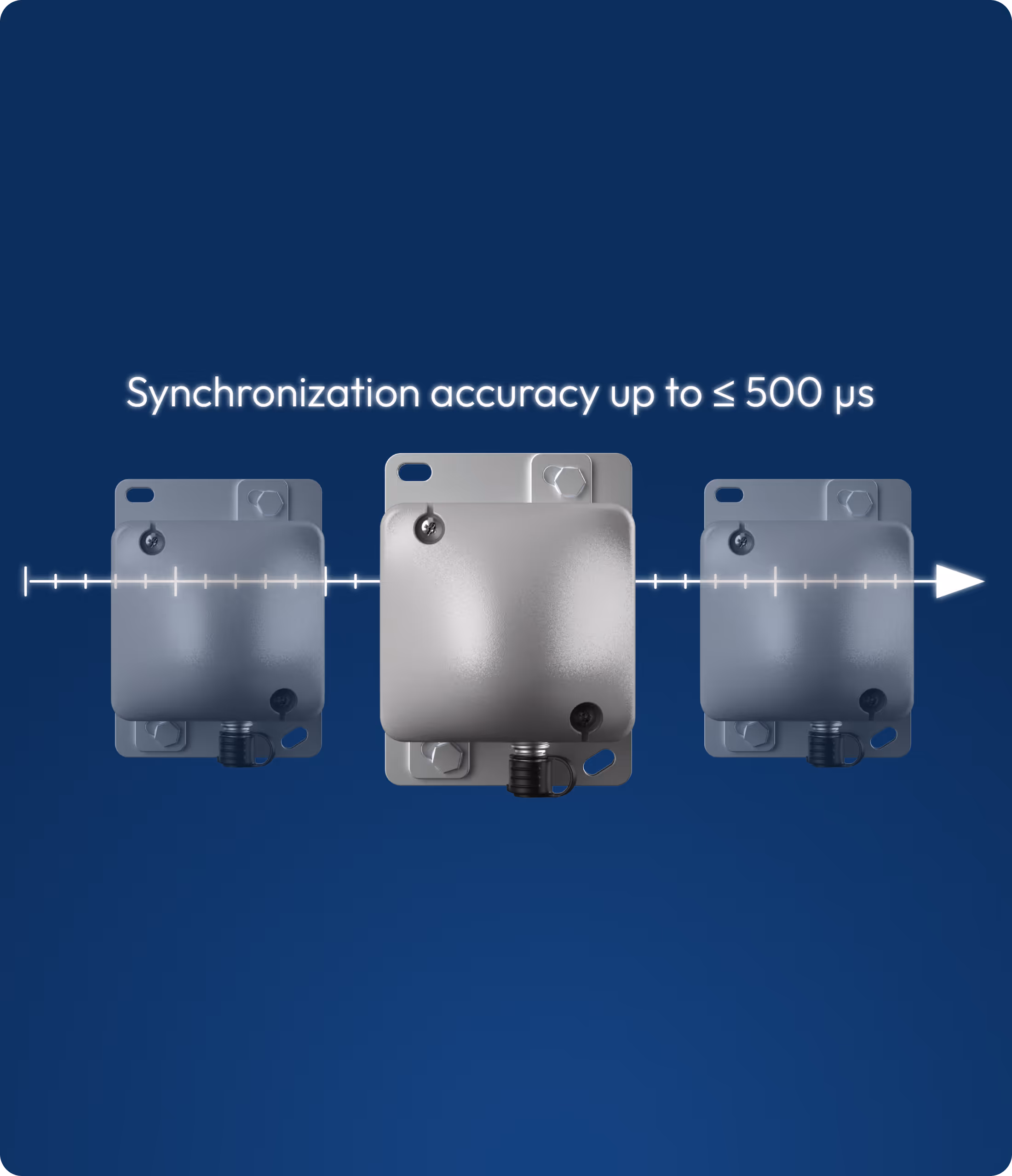

Built for synchronized modal analysis
Programmed acquisitions can be synchronized across multiple sensors with accuracy up to ≤ 500 µs, enabling reliable time-aligned datasets for modal analysis, frequency-domain assessment, and advanced structural diagnostics in MyMove.

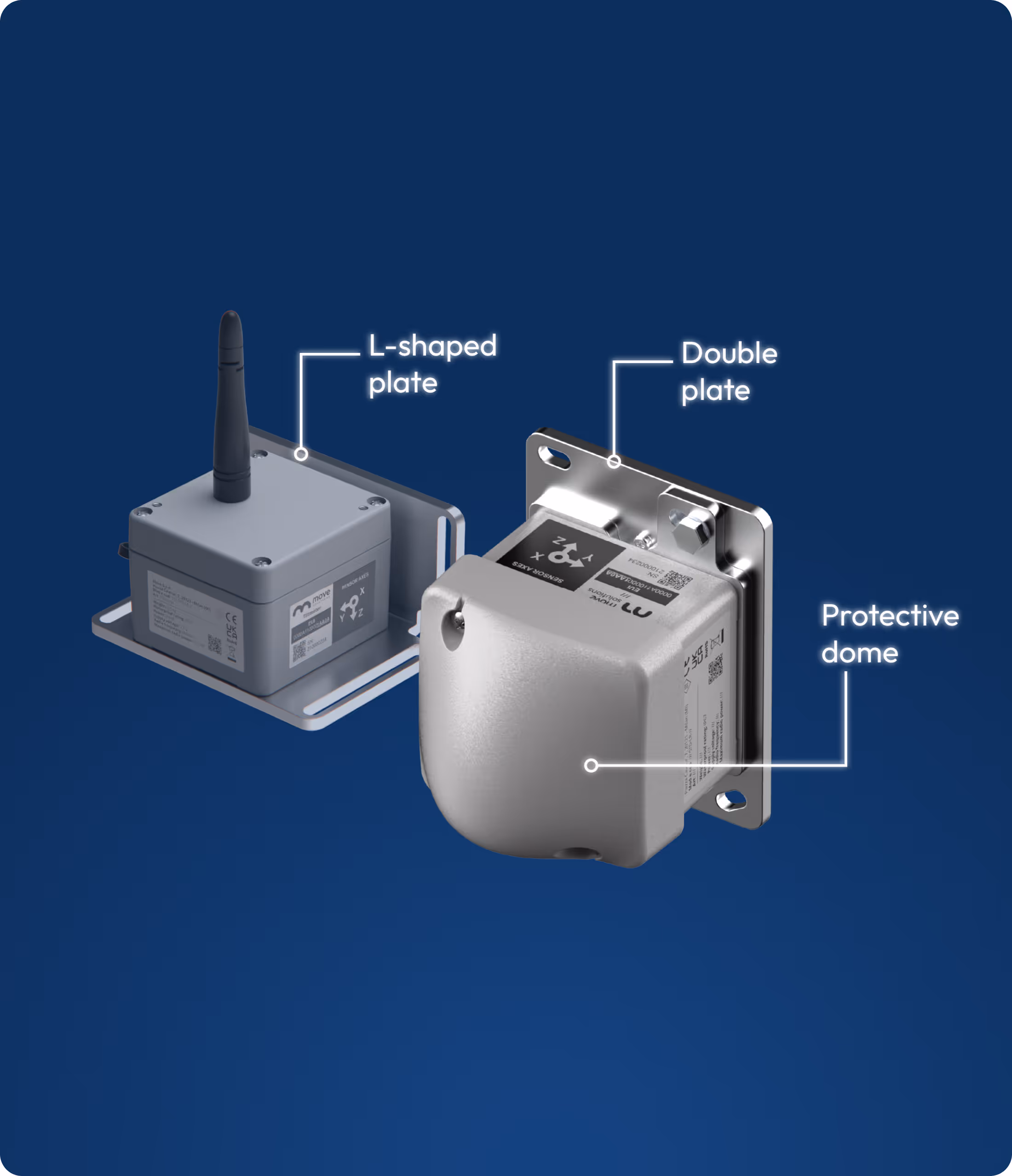

Designed for longer deployments and real site conditions
Store data locally in circular memory, enable offline recording when connectivity is unavailable, extend battery life with an external battery pack, and simplify installation with a two-piece mounting plate, optional L-shaped bracket, and protected short-antenna configuration.
What this sensor measures
Triaxial acceleration
Measures dynamic acceleration on three orthogonal axes, with selectable full scale from ±128 mg to ±8.192 g and sampling rates from 40 to 640 Hz.
Event statistics
Returns RMS, minimum, and maximum values for each acquisition, enabling fast interpretation of event severity and structural response.
Waveform and frequency-domain analysis
In Standard Trigger and Programmed modes, the sensor provides full waveform data that can be used for deeper event review, FFT processing, and dynamic interpretation in MyMove.
Temperature
Records temperature at acquisition time to add environmental context to structural measurements and diagnostics.
Technical specifications
For detailed information about Accelerometer - preview capabilities, check the download datasheet section.
Downloads
Explore our datasheets and technical resources to access detailed product specifications, key features, and practical tools — everything you need to make informed decisions and get the most out of our technology.
Use MyMove for real-time insights
Connect your sensors and devices to MyMove and access the full power of the platform:real-time dashboards, alarms, automated PDF reporting, remote system control, and advanced tools for structural health monitoring.
Integrate Move sensors via API
Use our API to access real-time and historical sensor data, configure devices remotely, and integrate everything into your SaaS, BIM model, or custom workflow.
