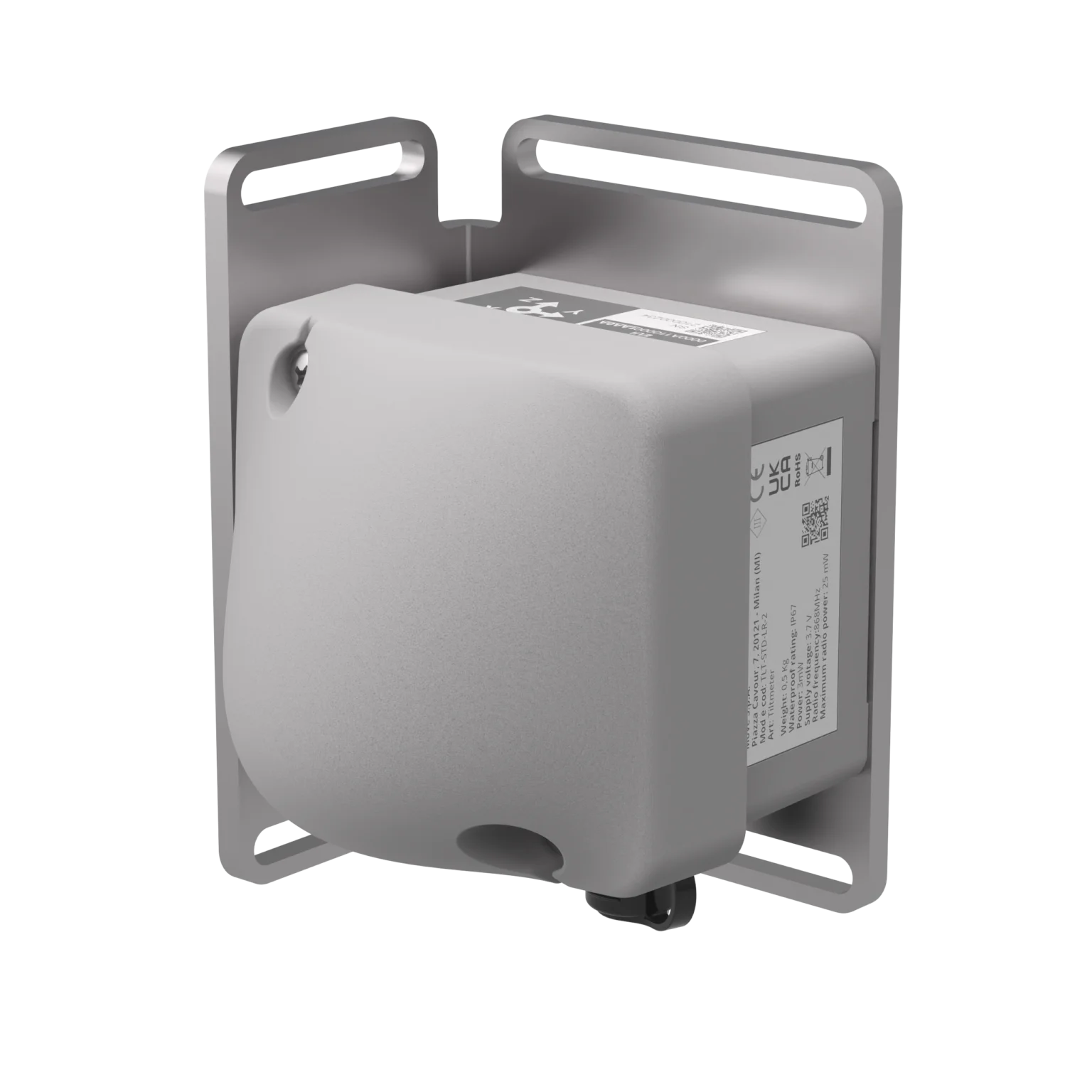

Tiltmeter
Wireless sensor for static inclination monitoring The Tiltmeter is a wireless, battery-powered sensor designed to measure variations in the static tilt angle relative to the horizontal plane. Multiple devices can be synchronized across large assets to reconstruct deformation profiles and monitor structural movement via the MyMove IoT Platform.
Everything you need, built In
All Move Solutions sensors share the same foundation: precision, reliability, and seamless integration.
Long-range, low-power data transmission ideal for remote and large-scale sites.
Multi-year operation with adjustable sampling and transmission settings.
Configure settings, calibrate sensors, and manage alarm thresholds, all in one platform.
Built for reliable use in harsh environments.
Precision tilt. Zero wires. Total structural awareness.
Tracks angular changes with sub-milliradian resolution, giving engineers full visibility into settlement, rotation, and early warning signs of instability.
High-resolution triaxial tilt sensing
Provides angular data on both longitudinal (φ) and transversal (θ) axes with exceptional resolution (0.000015°), repeatability (±0.0005°), and accuracy (0.005°), enabling detailed assessment of slow structural deformations.
Scheduled, synchronized acquisition
Supports programmable acquisition intervals (2, 5, 15, 30 min) with 16-second averaging per sample. Devices are time-synchronized to capture tilt variations consistently across networks.
Compatible with MyMove Tools
Supports advanced processing through MyMove platform tools: • Tiltmeter Chains Tool: calculates cumulative and differential displacement across chains of tiltmeters for horizontal or vertical sections. • Rail Monitoring Tool: enables computation of rail geometry parameters such as CANT, TWIST, vertical displacement, and track bowing.
Inclination compensation via platform
Integrated tilt compensation aligns measurements relative to the original installation position (Δφ and Δθ), correcting for non-horizontal mounting.
What this sensor measures
Tilt angle φ (phi)
Angle between the sensor’s Z axis and its horizontal projection.
Tilt angle θ (theta)
Angle between the Y axis and its horizontal projection.
Temperature
Ambient temperature recorded with each acquisition.
Available add-ons
Technical specifications
Sensing technology
MEMS triaxial accelerometer
Angular resolution
0.000015°
Repeatability
±0.0005°
Accuracy
0.005°
Range
±90° on both axes
Cross-axis sensitivity
1%
Temperature resolution
0.125 °C
Sampling
Programmed, 16-second averaging
Synchronization accuracy
±1 s
Radio
LoRaWAN, 868/915 MHz
Battery
3.6V LiSOCl₂ 19Ah (Type D)
IP rating
IP67
Size
75 × 80 × 57 mm | Weight: 1.1 kg
Operating temp
–40°C to +85°C
Battery life
up to 8 years (30 min acquisition)
For detailed information about
Tiltmeter
capabilities, check the download datasheet section.
